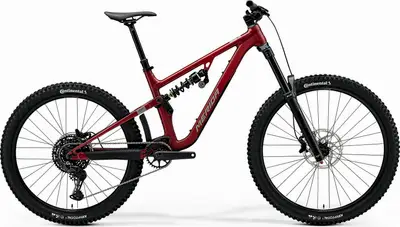

    ONE-SIXTY FR 4002026 Merida
    Recommended
    MSRP
    ($3,705)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro
    Weight
    		39.0 lbs
    5.2
    Frame
    		Aluminum
    		Suntour DUROLUX
    		DVO Jade X
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Tektro Gemini Hydraulic Disc
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		180mm
    Rear Travel
    		171mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida ONE-SIXTY FR 400 is a 29″ / 27.5″ aluminum frame full suspension enduro bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    ONE-SIXTY FR 400
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    ONE-SIXTY FR 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ONE-SIXTY FR 4002026 Merida
    Frame

    ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour Durolux 38 RC, Air, 180mm suspension travel, Tapered, xxmm fork offset, 29x2.60" max. wheelsize

    Travel: 180mm

    Spring Type: Air

    Shock

    DVO Jade X D3, coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

    Travel: 171mm

    Bottom Bracket

    Samox BSA 24mm EB2401

    Headset

    Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

    Stem

    MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 40 mm

    Handlebar

    MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise

    Saddle

    MERIDA COMP SL, 25% recycled material, V-mount

    Seatpost

    MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    MERIDA Expert TR II, 32 teeth, 165 mm for all sizes

    Shifters

    Shimano SL-MT500-L / Shimano CUES U6000

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    KMC xGlide

    Chain Guide

    MERIDA EXPERT TR ISCG05

    Brakes

    Tektro Gemini HD-M535, 4 piston

    Type: Tektro Gemini Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

    Spokes

    Double Butted Black stainless

    Front Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft Compund, Rear: Continental Kryptotal-R, 27.5x2.4", fold, TR, Enduro Casing, Soft Compound

    Disc Rotors

    Tektro TR203-45, 203mm
