MSRP | ($4,440) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
Weight | 36.8 lbs | |
Frame | Aluminum | |
| Marzocchi Bomber Z1 | ||
| Marzocchi Bomber | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| SRAM DB8 Hydraulic Disc | ||
| NX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 171mm | |
Brand Site | ||

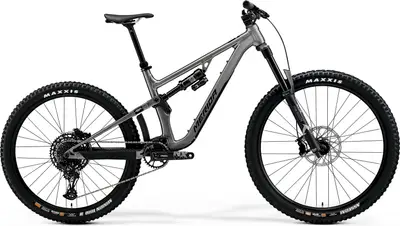

Summary | The Merida ONE-SIXTY 700 is a 29″ / 27.5″ aluminum frame full suspension enduro bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | ONE-SIXTY LITE III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Marzocchi Z1, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize Travel: 170mm Spring Type: Air | |
Shock | Marzocchi Bomber Air, platform Travel: 171mm | |
Bottom Bracket | SRAM DUB BSA 73 MTB WIDE | |
Headset | Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing | |
Stem | MERIDA EXPERT eTRII, material: aluminium, 35 mm diameter, 0° stem angle, 40 mm | |
Handlebar | MERIDA EXPERT TR II, material: aluminium, 780 mm width, XS/S 18 mm rise, M/L/XL 30 mm rise | |
Saddle | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool | |
Seatpost | MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost Type: Dropper |
Rear Derailleur | SRAM NX Eagle | |
|---|---|---|
Crank | SRAM NX Eagle DUB, 32 teeth, 170 mm for all sizes | |
Shifters | SRAM NX | |
Cassette | SRAM PG-1210 Eagle, 10-50 teeth, 12 speed | |
Chain | SRAM SX Eagle | |
Chain Guide | MERIDA EXPERT TR ISCG05 | |
Brakes | SRAM DB8, 4 piston Type: SRAM DB8 Hydraulic Disc |
Rims | MERIDA EXPERT TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29" | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt | |
Rear Hub | Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt | |
Tires | Front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra | |
Disc Rotors | SRAM CenterLine, 200 mm |
