Bike Comparison
    ONE-SIXTY 4002020 Merida
    Recommended
    MSRP
    ($2,849)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro
    Weight
    		34.0 lbs
    5.2
    Frame
    		Aluminum
    Fork
    		RockShox 35 Gold RL
    Shock
    		RockShox Super Deluxe Select
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		SX Eagle, X1
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		165mm
    Brand Site

    merida-bikes.com

    Summary

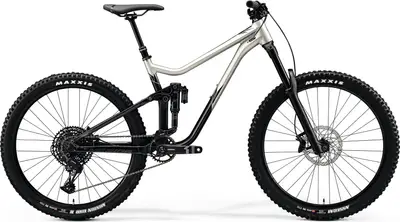

    		The Merida ONE-SIXTY 400 is a 27.5″ aluminum frame full suspension enduro bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    ONE-SIXTY 400
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    ONE-SIXTY 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ONE-SIXTY 4002020 Merida
    Frame

    ONE-SIXTY LITE, 165mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard

    BB Standard: BB86/BB92, Press Fit

    Fork

    Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 37mm fork offset

    Shock

    Rock Shox Super Deluxe Select

    Bottom Bracket

    SRAM BB DUB PF MTB 92

    Headset

    FSA NO.57/55E neck

    Handlebar

    MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise

    Saddle

    MERIDA COMP CC

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost

    Groupset
    Rear Derailleur

    SRAM SX Eagle

    Crank

    SRAM X1 1000 Eagle, 32 teeth, 170 mm-S up

    Shifters

    SRAM SX Eagle

    Cassette

    SRAM PG-1210 Eagle, 11-50 teeth, 12 speed

    Chain

    SRAM SX Eagle

    Brakes

    Shimano MT-520

    Wheels
    Rims

    MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Front Hub

    MERIDA COMP TR

    Rear Hub

    MERIDA COMP TR

    Tires

    Maxxis Assegai / Maxxis Minion DHR II

    Disc Rotors

    Shimano RT30

    Accessories
    Fenders

    MERIDA MTB lite-front
