 | Recommended |
|---|
MSRP | ($3,482) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 30.9 lbs | |
| Aluminum | ||
Fork | RockShox Pike Select | |
Shock | RockShox Deluxe Select+ | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | GX Eagle, Truvativ Descendant | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 140mm | |
Brand Site | ||

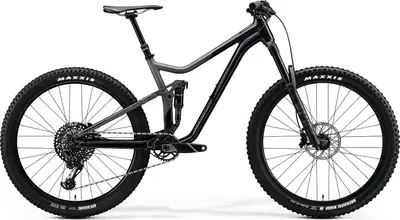

Summary | The Merida ONE-FORTY 800 is a 27.5″ aluminum frame full suspension trail bike with high-end components. | |
Based on frame geometry and build specs.
Frame | ONE-FORTY LITE, 140mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | Rock Shox Pike Select, Air, 150mm suspension travel, Tapered, 37mm fork offset | |
Shock | Rock Shox Deluxe Select+, lockout | |
Bottom Bracket | SRAM BB DUB PF MTB 92 | |
Headset | MERIDA M2339 Neck | |
Handlebar | MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise | |
Saddle | MERIDA EXPERT CC | |
Seatpost | MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost |
Rear Derailleur | SRAM GX Eagle | |
|---|---|---|
Crank | SRAM Descendant 6K Eagle, 32 teeth, 170 mm-S, 175 mm-M up | |
Shifters | Shimano SL -MT800-IL / SRAM GX Eagle | |
Cassette | SRAM XG-1275 Eagle, 10-50 teeth, 12 speed | |
Chain | SRAM GX Eagle | |
Brakes | SRAM Code R |
Rims | MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) | |
|---|---|---|
Front Hub | MERIDA COMP TR | |
Rear Hub | MERIDA COMP TR | |
Tires | Maxxis Minion DHR II / Maxxis Rekon | |
Disc Rotors | SRAM Centerline |
Fenders | MERIDA MTB lite-front |
|---|
