Recommended |
---|
MSRP | ($3,925) | |
---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 35.9 lbs | |
Aluminum | ||
Fork | Marzocchi Bomber Z1 | |
Shock | RockShox Deluxe Select+ | |
Wheels | Aluminum | |
29″ | ||
Brakes | Hydraulic Disc | |
Groupset | SLX, XT | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 143mm | |
Brand Site | ||

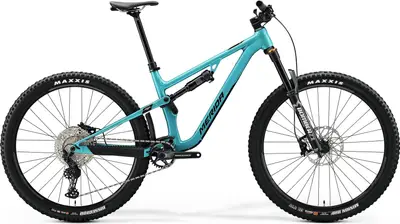

Summary | The Merida ONE-FORTY 700 is a 29″ aluminum frame full suspension trail bike with upper mid-range components. |
Based on frame geometry and build specs.
Frame | ONE-FORTY LITE III, 143mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard: BSA, 68mm, Threaded | |
---|---|---|
Fork | Marzocchi Z1, Air, 150mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize | |
Shock | Rock Shox Deluxe Select+, lockout | |
Bottom Bracket | Race Face BSA 68/73 – 24mm | |
Headset | MERIDA 8158 | |
Stem | MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 50 mm | |
Handlebar | MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise | |
Saddle | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool | |
Seatpost | MERIDA TEAM TR, 34.9mm diameter, 10mm setback, 30-230mm travel seatpost |
Rear Derailleur | Shimano SLX M7100 Shadow+, SGS | |
---|---|---|
Crank | Race Face Aeffect, 32 teeth, 170 mm-S, 175 mm-M up | |
Shifters | Shimano SL -MT500-IL / Shimano XT, Multi Release | |
Cassette | Shimano Deore M6100, 10-51 teeth, 12 speed | |
Chain | KMC X12 | |
Brakes | Shimano SLX M7120, 4 piston |
Rims | MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) | |
---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Front: Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera, Rear: Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra | |
Disc Rotors | Shimano RT64, 203 mm |
