Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 31.7 lbs | |
Frame | Aluminum | |
| Suntour AION | ||
| Suntour | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Alivio Hydraulic Disc | ||
| X1, SX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 140mm | |
Brand Site | ||

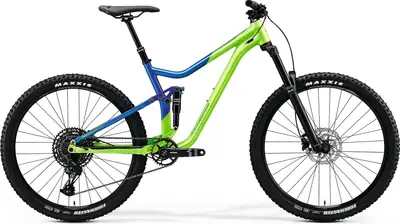

Summary | The Merida ONE-FORTY 400 is a 27.5″ aluminum frame full suspension trail bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | ONE-FORTY LITE, 140mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | Suntour Aion35 EVO LOR, Air, 150mm suspension travel, Tapered, Lockout, 51mm fork offset Travel: 150mm Spring Type: Air | |
Shock | Suntour Unair TR LOR8, lockout Travel: 140mm | |
Bottom Bracket | SRAM BB DUB PF MTB 92 | |
Headset | MERIDA M2339 Neck | |
Handlebar | MERIDA EXPERT CC, material: aluminium, 740mm width, 10mm rise | |
Saddle | MERIDA COMP CC | |
Seatpost | MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost Type: Dropper |
Rear Derailleur | SRAM SX Eagle | |
|---|---|---|
Crank | SRAM X1 1000 Eagle, 32 teeth, 170 mm-S, 175 mm-M up | |
Shifters | SRAM SX Eagle | |
Cassette | SRAM PG-1210 Eagle, 11-50 teeth, 12 speed | |
Chain | SRAM SX Eagle | |
Brakes | Shimano MT-200, 2 piston Type: Shimano Alivio Hydraulic Disc |
Rims | MERIDA COMP CC, 20mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Maxxis Forekaster, 27.5x2.35", fold, TR EXO Dual |
