MSRP | ($7,064) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 26.0 lbs | |
Frame | Carbon | |
| Fox Performance Float 34 | ||
| Fox Float SL Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano XT Hydraulic Disc | ||
| XT Di2 | ||
Drivetrain | 1 × 12 Electronic | |
Suspension | Full | |
Front Travel | 120mm | |
Rear Travel | 100mm | |
Brand Site | ||

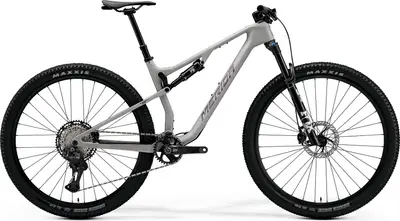

Summary | The Merida NINETY-SIX XT is a 29″ carbon frame full suspension crosscountry bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | NINETY-SIX CF4 III, 100mm suspension travel, material: carbon, 29x2.35" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Fox 34 Float SL Performance, Air, 120mm suspension travel, Tapered, 3 Pos Remote lockout, 44mm fork offset Travel: 120mm Spring Type: Air | |
Shock | Fox Float SL Performance Elite, Large Volume aircan, 3 Pos PTL remote lockout, 29x2.5" max. WHS Travel: 100mm | |
Bottom Bracket | Shimano BB-MT-501, 24mm | |
Headset | Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing | |
Handlebar | FSA SIC CF 1-piece cockpit, material: carbon, 760mm width, -7°, S/M/L:60 mm, XL: 80 mm | |
Saddle | Prologo Akero R PAS, reycled, V-mount, incl. MERIDA minitool | |
Seatpost | MERIDA TEAM TR SL, 30.9mm diameter, 0mm setback, 150mm travel seatpost Type: Dropper |
Rear Derailleur | Shimano XT DI2 M8250, wireless, SGS | |
|---|---|---|
Crank | Shimano XT M8200, 34 teeth, 170 mm for all sizes | |
Shifters | Shimano XT DI2 M8250, wireless | |
Cassette | Shimano XT M8200, 10-51 teeth, 12 speed | |
Chain | KMC X12 | |
Brakes | Shimano XT M8200, 2 piston Type: Shimano XT Hydraulic Disc |
Rims | MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) | |
|---|---|---|
Spokes | Double Butted Black stainless w/black nipples | |
Front Hub | Shimano TC500-B / Shimano TC600-MS-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano TC500-B / Shimano TC600-MS-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Front: Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO, Rear: Maxxis Rekon Race, 29x2.25", fold, TR EXO 120 TPI | |
Disc Rotors | Shimano CL700, 180mm, 160mm |
