 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Cyclocross | |
Weight | 19.1 lbs | |
| Carbon | ||
Fork | Carbon | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Hydraulic Disc | |
Groupset | Apex | |
Drivetrain | 1 × 11 | |
Brand Site | ||

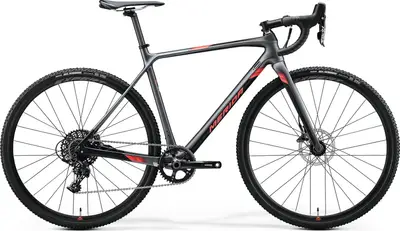

Summary | The Merida MISSION CX 5000 is a carbon frame cyclocross bike with mid-range components and hydraulic disc brakes. | |
Based on frame geometry and build specs.
Frame | MISSION CX CF3, material: carbon, 700C wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | MISSION CX CF3 | |
Bottom Bracket | SRAM Pressfit PF86 | |
Headset | VP-B303AC Neck | |
Handlebar | MERIDA EXPERT SL, material: aluminium | |
Saddle | MERIDA EXPERT CC | |
Seatpost | MERIDA EXPERT CC, material: carbon, 27.2mm diameter, 15mm setback |
Rear Derailleur | SRAM Apex1 | |
|---|---|---|
Crank | SRAM Apex1, 40 teeth, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL | |
Shifters | SRAM Apex 1 HRD | |
Cassette | SRAM PG-1130, 11-42 teeth, 11 speed | |
Chain | KMC X11 | |
Brakes | SRAM Apex1 HRD, Hydraulic Disc | |
Brake Levers | SRAM Apex 1 HRD |
Rims | MERIDA EXPERT CX, 19mm inner width, 24mm height | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | VP 173SB, 100x12mm width front hub, 28 spoke holes, 6 bolt | |
Rear Hub | VP 273SB, 142x12mm width rear hub, 28 spoke holes, 6 bolt | |
Tires | Maxxis All Terrane, 700x33C, fold, tubless compatible |
