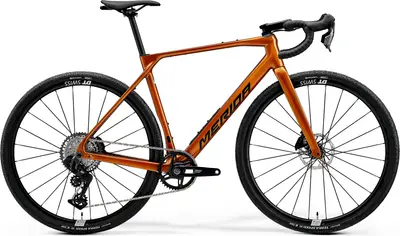

    MISSION 60002026 Merida
    Recommended
    MSRP
    ($4,575)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		20.1 lbs
    6.6
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		40c
    		SRAM Rival Hydraulic Disc
    		Rival XPLR AXS, Rival AXS
    Drivetrain
    		1 × 13 Electronic
    Brand Site

    merida-bikes.com

    Summary
    		The Merida MISSION 6000 is a carbon frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    MISSION 6000
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    MISSION 6000

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MISSION 60002026 Merida
    Frame

    MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 68mm, Threaded

    Tire Clearance: 40c

    Fork

    MERIDA MISSION CF4 II, Tapered, material: carbon, 700x45C max. wheelsize

    Bottom Bracket

    SRAM DUB BSA Road Wide, 68mm

    Headset

    Acros ICR MERIDA external neck w/diecast splitring

    Stem

    MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL

    Handlebar

    MERIDA EXPERT GR II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

    Saddle

    MERIDA COMP SL, 25% recycled material, V-mount

    Seatpost

    MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

    Type: Rigid

    Groupset
    Rear Derailleur

    SRAM Rival XPLR

    Crank

    SRAM Rival XPLR, 42 teeth, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

    Shifters

    SRAM Rival AXS, Hydraulic disc

    Cassette

    SRAM Rival XPLR, 10-46 teeth, 13 speed

    Chain

    SRAM Rival, Flattop

    Brakes

    SRAM Rival AXS XPLR, Disc

    Type: SRAM Rival Hydraulic Disc

    Brake Levers

    SRAM Rival AXS XPLR

    Wheels
    Rims

    DT Swiss G 1800 spline, CL, 100x12mm width front hub, 142x12mm width rear hub, 24mm inner width, 25mm height, Centerlock, material: aluminium

    Spokes

    Black stainless

    Front Hub

    MERIDA EXPERT TR, L=165,5mm M12x1,0 *including removable lever, 6/4mm allen key

    Rear Hub

    MERIDA EXPERT TR, L=165,5mm M12x1,0 *including removable lever, 6/4mm allen key

    Tires

    Front: Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL, Rear: Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL

    Disc Rotors

    SRAM Paceline RT-PLN-A2, 160 mm
