 | Recommended |
|---|
MSRP | ($542) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | General Youth | |
Weight | 20.9 lbs | |
| Aluminum | ||
Fork | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
Brakes | Hydraulic Disc | |
Groupset | Altus | |
Drivetrain | 1 × 7 | |
Suspension | Hardtail | |
Front Travel | 40mm | |
Brand Site | ||

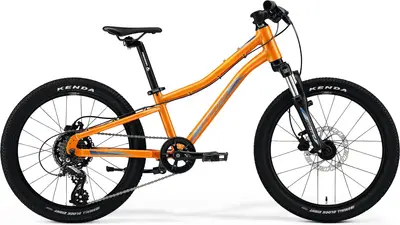

Summary | The Merida MATTS J. 20 DISC is a 20″ aluminum frame general youth bike with modest components and hydraulic disc brakes. | |
Frame | MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, 100mm, Threaded | |
|---|---|---|
Fork | Suntour XCT-JR P, Custom coil, 40mm suspension travel, 20x2.2" max. wheelsize | |
Bottom Bracket | BSA, 100mm, threaded | |
Headset | FSA TH888 | |
Handlebar | MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise | |
Saddle | MERIDA COMP JR | |
Seatpost | MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback | |
Pedals | Marwi SP-202 |
Rear Derailleur | Shimano RD-M310 | |
|---|---|---|
Crank | MERIDA EXPERT JR, 28 teeth, 127 mm | |
Shifters | Altus | |
Cassette | Shimano MF-TZ500, 14-34 teeth, 7 speed | |
Chain | KMC NS8 | |
Brakes | Power DS100 / Tektro HD-M275, 2 piston, hydraulic disc brake | |
Brake Levers | Power DS100 |
Rims | MERIDA JR 20+, material: aluminium | |
|---|---|---|
Spokes | Black steel | |
Front Hub | Joytech D041DSE, 100x9mm width front hub, 20 spoke holes | |
Rear Hub | Joytech D242TSE, 135x9mm width rear hub, 24 spoke holes | |
Tires | Kenda Small Black 8, 20x1.95", wire | |
Disc Rotors | Tektro, 160mm, 140mm |
Stand | center type alloy |
|---|
