    MATTS 602024 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		General Youth
    Weight
    		31.1 lbs
    3.7
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Hydraulic Disc
    		CUES
    Drivetrain
    		2 × 9
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

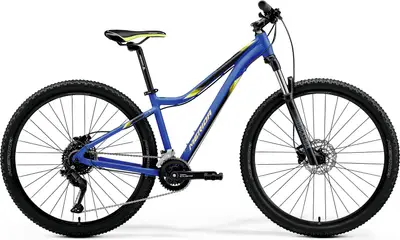

    		The Merida MATTS 60 is a 27.5″ aluminum frame general youth bike with upper mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    MATTS 60

    Highest gear

    (descending)

    Geometry
    Specs
    MATTS 602024 Merida
    Frame

    MATTS 7. SPEED-D, 100 mm suspension travel, material: aluminium, 27.5x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 100mm, Threaded

    Fork

    Rock Shox Judy TK, Coil, 100 mm suspension travel Lockout, 42 mm fork offset, 27.5x2.25" max. wheelsize

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Shimano BB-UN101 68-123

    Headset

    FSA NO.10P Neck15

    Handlebar

    MERIDA CC, material: aluminium, 640 mm width, 25 mm rise

    Saddle

    MERIDA Sport comfort

    Seatpost

    MERIDA CC, 27.2 mm diameter, 15 mm setback, material: aluminium

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U3020, SGS

    Front Derailleur

    Shimano CUES U4000

    Crank

    Shimano CUES U4000-2, 36-22 teeth, MAT Aluminium, 170 mm-XS/S, 175 mm-M up

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano CS-LG300, 11-36 teeth, 9 speed

    Chain

    Sunrace CN11A

    Brakes

    Tektro M275, hydraulic brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    MERIDA CC, 17 mm inner width, material: aluminium

    Spokes

    Black steel

    Front Hub

    Shimano TX505, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TX505, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    MERIDA K1080, 27.5x2.2", wire

    Disc Rotors

    Shimano RT10, 160 mm
