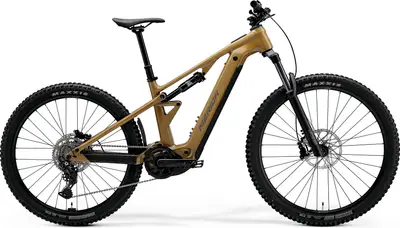

Compare: 2026 Merida ETMO 400

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	ETMO 4002026 Merida	Recommended

MSRP	($4,911)
Where to Buy	— $1 At
Category	Trail, E-Bike
	5.2
Frame	Aluminum
	X-Fusion MIG
	X-Fusion
Wheels	Aluminum
Wheel Size	29″ / 27.5″
	SRAM Hydraulic Disc
	Bosch 600W 63Nm mid-drive
	Bosch 540Wh
	CUES
Drivetrain	1 × 9
Suspension	Full
Front Travel	140mm
Rear Travel	142mm
Brand Site	merida-bikes.com
Summary	The Merida ETMO 400 is a 29″ / 27.5″ aluminum frame full suspension trail e-bike with mid-range components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

ETMO 400

Other Trail bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

ETMO 400

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	ETMO 4002026 Merida

Frame	ETMO LITE, material: aluminium, 142mm suspension travel, 27.5" x 2,6” max. wheelsize, 148x12mm axle standard, intube * BB Standard: BSA, Threaded
Fork	X-Fusion Migo 34, Coil, 140mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize Travel: 140mm Spring Type: Coil
Shock	X-Fusion O2Pro Travel: 142mm
Bottom Bracket	BSA, threaded
Headset	FSA CRII NO.80
Stem	MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar	MERIDA COMP TR II, material: aluminium, 780mm width, 35mm rise
Saddle	MERIDA COMP SL, V-mount, incl. MERIDA minitool
Seatpost	MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost Type: Dropper
Pedals	VP VPE-527

Groupset

Rear Derailleur	Shimano Cues U4000, GS
Crank	FSA Direct Mount Steel Chainring, 36 teeth
Shifters	Shimano MT500-L / Shimano Cues U4000-9
Cassette	Shimano Cues LG400-9, 11-46 teeth, 9 speed
Chain	Shimano LG500
Brakes	SRAM DB4 stealth, 4 piston Type: SRAM Hydraulic Disc

Wheels

Rims	MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes	Black stainless, black nipples
Front Hub	Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub	Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Tires	Front: Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready, Rear: Maxxis Dissector, 27.5x2.4" wired, tubeless ready
Disc Rotors	SRAM CenterLine, 200mm

Electric Components

Accessories

Lights	Lezyne Hekto StVZO E350+ Reverse / Chance Good CG-404RG, reverse MERIDA Custom Mount
Fenders	RF-001 mini fender
