    eSPRESSO XT-EDITION2020 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		46.7 lbs
    7.5
    Frame
    		Aluminum
    		Suntour NCX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano XT Hydraulic Disc
    		Shimano 250W 60Nm mid-drive
    		Shimano 504Wh
    		XT
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

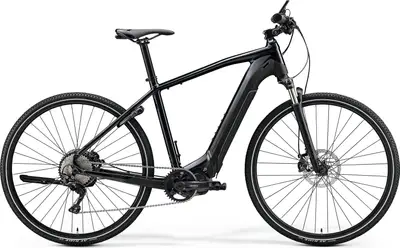

    		The Merida eSPRESSO XT-EDITION is a 700c aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eSPRESSO XT-EDITION

    Highest gear

    (descending)

    Geometry
    Specs
    eSPRESSO XT-EDITION2020 Merida
    Frame

    eSPRESSO LITE II, material: aluminium, 700C wheelsize, 142x12mm axle standard, intube, max. 504 Wh

    BB Standard: BSA, Threaded

    Fork

    Suntour NCX RL, Air, 63mm suspension travel, Tapered, remote lockout

    Travel: 63mm

    Spring Type: Air

    Bottom Bracket

    included

    Headset

    MERIDA 2333 Neck

    Handlebar

    MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP, VPE-891

    Groupset
    Rear Derailleur

    Shimano XT M8000 Shadow+

    Crank

    Shimano CRE80, 38 teeth, Shimano FC-E8000

    Shifters

    Shimano XT

    Cassette

    Shimano M7000, 11-42 teeth, 11 speed

    Chain

    KMC e11S

    Brakes

    Shimano XT, 2 piston

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano Deore, 142x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Continental AT RIDE, 622-42, wire, reflecting line

    Electric Components
    Motor

    Shimano E7000, 60Nm

    Battery

    Shimano E8035, 504Wh

    Display

    Shimano SC-E6100

    Accessories
    Lock

    Abus 5650 LH-3 lock

    Stand

    CL-KA98
