Recommended |
---|
MSRP | ||
---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid, E-Bike | |
Weight | 57.6 lbs | |
Aluminum | ||
Fork | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
Brakes | Hydraulic Disc | |
Shimano 250W 60Nm mid-drive | ||
Shimano 504Wh | ||
Groupset | Shimano | |
Drivetrain | Internally Geared Hub | |
Suspension | Hardtail | |
Front Travel | 80mm | |
Brand Site | ||

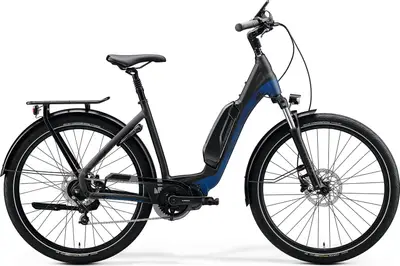

Summary | The Merida eSPRESSO TK 700 EQ is a 650b aluminum frame hybrid e-bike with modest components and hydraulic disc brakes. |
Frame | eSPRESSO LITE 650, material: aluminium, 700C wheelsize, 135x9mm axle standard, external, max. 504 Wh BB Standard: BSA, Threaded | |
---|---|---|
Fork | Suntour XCM-ATB, Coil, 80mm suspension travel | |
Bottom Bracket | included | |
Headset | MERIDA 2346 Neck | |
Handlebar | MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise | |
Saddle | MERIDA EXPERT TK, V-mount | |
Seatpost | MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel | |
Pedals | VP, VPE-891 |
Crank | EP01A-SHE80-U0-C50-NWP203-38T-NS, 38 teeth, Shimano FC-E6100 | |
---|---|---|
Shifters | Shimano SW-E6010-R | |
Cassette | Shimano CS-C7000, 27 teeth, 1 speed | |
Chain | KMC Z1eHX | |
Chain Guide | Sunnywheel SW-CG-173A | |
Brakes | Shimano MT-401-3A, 2 piston |
Rims | MERIDA COMP TK, 20mm inner width, material: aluminium | |
---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano Nexus Inter-5E, 135x9mm width rear hub, 36 spoke holes, Centerlock | |
Tires | Continental Contact Plus City, 27.5x2.2", wire, reflecting line |
Motor | Shimano E6100, 60Nm | |
---|---|---|
Battery | Shimano E8010, 504Wh | |
Display | Shimano SC-E6100 |
Fenders | Sunnywheel SW-FA-311-65A(MSB) | |
---|---|---|
Racks | RACKTIME RT MERIDA TK / CC | |
Lock | Abus 5650 LH-3 lock | |
Stand | CL-KA100 |
