 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid, E-Bike | |
Fork | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Hydraulic Disc | |
| Shimano 250W 60Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | XT, Shimano | |
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 63mm | |
Brand Site | ||

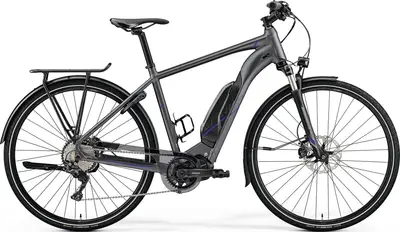

Summary | The Merida eSPRESSO / -L XT-EDITION EQ is a 700c hybrid e-bike with high-end components and hydraulic disc brakes. | |
Frame | eSPRESSO / -L | |
|---|---|---|
Fork | Suntour NCX RL, Air, 63mm suspension travel, Tapered | |
Headset | MERIDA M2333 neck, 2191025648 | |
Handlebar | MERIDA Expert TK, 660mm width, 15mm rise | |
Saddle | MERIDA Comfort | |
Seatpost | MERIDA Expert, 30.9mm diameter, 15mm setback | |
Pedals | VP, VPE-891 |
Rear Derailleur | Shimano XT M8000 Shadow+ | |
|---|---|---|
Front Derailleur | no | |
Crank | Shimano CRE80, 38 teeth | |
Shifters | no / Shimano XT 11 | |
Cassette | Shimano M7000, 11-42 teeth, 11 speed | |
Chain | KMC e11T | |
Chain Guide | SW-CG-173A | |
Brakes | Shimano XT fin | |
Brake Levers | attached |
Rims | MERIDA Comp TK, 20mm inner width | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 142x12mm width, 36 spoke holes, Centerlock | |
Rear Hub | Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 142x12mm width, 36 spoke holes, Centerlock | |
Tires | Continental RIDE TOUR, 622x42", reflective stripe |
Motor | Shimano E7000, 60Nm | |
|---|---|---|
Battery | Shimano E8010, 504 Wh | |
Display | Shimano SC-E6100 |
Lights | Herrmans H-BLACK MR8 E / Shine evo integrated in Racktime carrier | |
|---|---|---|
Fenders | Sunnywheel SW-FA 513 | |
Racks | Racktime 060889-001-D RT MERIDA Shine evo | |
Lock | Abus 5650 LH-3 lock | |
Bell | Alloy |
