    eSPRESSO L 775 EQ2025 Merida
    Recommended
    MSRP
    ($4,275)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		61.9 lbs
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Deore Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		Shimano
    Drivetrain
    		Internally Geared Hub
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

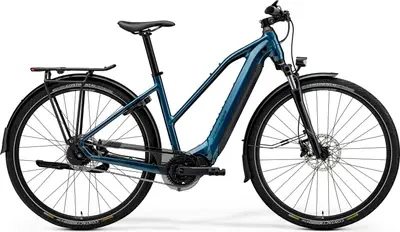

    		The Merida eSPRESSO L 775 EQ is a 700c aluminum frame hybrid e-bike with modest components and shimano deore hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Geometry
    Specs
    eSPRESSO L 775 EQ2025 Merida
    Frame

    eSPRESSO L LITE IV HG, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA-8156

    Handlebar

    MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK II

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Crank

    Samox NWP203, 38 teeth

    Shifters

    Shimano SW-EN600-R

    Cassette

    Shimano CS-C7000, 27 teeth

    Chain

    KMC Z1eHX EPT

    Chain Guide

    Sunnywheel SW-CG-173A

    Brakes

    Shimano MT410, 2 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano QC400, 100x9mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano Nexus Inter-5E, 135x9mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Continental Contact Cruiser, 622-50, wire, reflecting line

    Disc Rotors

    Shimano RT30 / Shimano RTEM300, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

    Display

    Shimano SC-EN610

    Accessories
    Fenders

    Sunnywheel SW-FA311-60E1 (MSB)

    Racks

    MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

    Lock

    Abus 4650 SL

    Stand

    Massload CL-KA98
