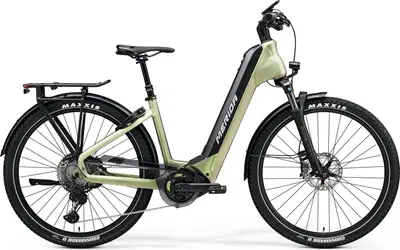

    eSPRESSO CC 975 EQ2022 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    8.2
    Frame
    		Aluminum
    		Suntour MOBIE
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano XT Hydraulic Disc
    		Shimano 85Nm mid-drive
    		750Wh
    		XT
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eSPRESSO CC 975 EQ is a 650b aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eSPRESSO CC 975 EQ

    Highest gear

    (descending)

    Geometry
    Specs
    eSPRESSO CC 975 EQ2022 Merida
    Frame

    eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal

    BB Standard: BSA, Threaded

    Fork

    SR Suntour Mobie 34 2CR, Air, 80mm suspension travel, 27,5x2,4" max wheelsize

    Travel: 80mm

    Spring Type: Air

    Bottom Bracket

    BSA, threaded

    Headset

    Acros Trekking

    Handlebar

    MERIDA EXPERT TK, material: aluminium, 680mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK, V-mount

    Seatpost

    MERIDA TEAM TK, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 120mm travel seatpost, XS/S 40mm seatpost suspension travel - M/L/XL 50mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-889

    Groupset
    Rear Derailleur

    Shimano XT M8130, SGS

    Crank

    Samox NWP203, 38 teeth

    Shifters

    Shimano XT M8130

    Cassette

    Shimano LG600, 11-50 teeth, 11 speed

    Chain

    Shimano LG500

    Chain Guide

    Sunnywheel SW-CG-173A

    Brakes

    Shimano XT, 4 piston, 2 piston

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock

    Rear Hub

    Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock

    Tires

    Maxxis Crossmark II, 27.5x2.25", wire, reflecting line

    Disc Rotors

    Shimano MT800 / Shimano RTEM810, 180 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Simplo Internal Battery, 750Wh

    Display

    Shimano SC-E6100

    Accessories
    Fenders

    Sunnywheel SW-FA-311-65A(MSB)

    Racks

    MERIDA MIK HD, Spring clip, Spanninga rear light

    Lock

    Abus 4650 XL

    Stand

    Atranvelo 1219-PC-7
