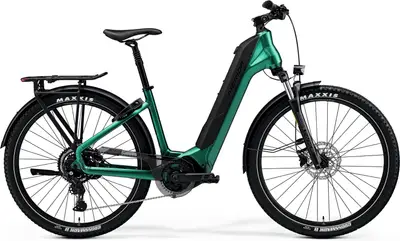

    eSPRESSO CC 400 EQ2026 Merida
    Recommended
    MSRP
    ($4,234)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		63.6 lbs
    6.9
    Frame
    		Aluminum
    		Suntour NVX
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Alivio Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 504Wh
    		CUES
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eSPRESSO CC 400 EQ is a 650b aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eSPRESSO CC 400 EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eSPRESSO CC 400 EQ2026 Merida
    Frame

    eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9 mm axle standard, internal

    BB Standard: BSA, Threaded

    Fork

    SR Suntour NVX30 DS, Coil, 80 mm suspension travel, 27,5x2,4" max. wheelsize

    Travel: 80mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA 8254

    Stem

    MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm- XS/S/M/L/XL

    Handlebar

    MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise

    Saddle

    MERIDA EXPERT TK II, V-mount

    Seatpost

    JD SP79, 30.9 mm diameter, 15 mm setback, 40 mm seatpost suspension travel

    Type: Suspension

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U4000

    Crank

    Samox NWP203, 38 teeth

    Shifters

    Shimano CUES U4000

    Cassette

    Shimano LG300, 11-46 teeth, 9 speed

    Chain

    Shimano LG500

    Chain Guide

    Sunnywheel SW-CG-173A

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20 mm inner width, material: aluminium

    Spokes

    Black stainless, black nipples

    Front Hub

    Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line

    Disc Rotors

    Shimano RT10, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Shimano EN805-L 504Wh

    Display

    Shimano SC-EN500

    Charger

    Shimano EC-E6002, 2A charging current

    Accessories
    Lights

    Herrmans H-Black MR4 E / Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier

    Fenders

    Sunnywheel SW-FA-311-65(MSB)

    Racks

    MERIDA MIK HD Carrier with Spring clip

    Lock

    Abus 4650 XL

    Stand

    Atranvelo ED-100-PC
