Bike Comparison
    MSRP
    $999
    Where to Buy
    $1

    At

    $999

    At REI

    Category
    Hybrid, E-BikeHybrid
    Weight
    54.0 lbs
    5.1
    AluminumAluminum
    Fork
    Suntour
    Wheels
    AluminumAluminum
    Wheel Size
    700c700c
    Brakes
    Hydraulic DiscHydraulic Disc
    Shimano 250W 60Nm mid-drive
    Shimano 504Wh
    Groupset
    ShimanoCUES, Shimano
    Drivetrain
    Internally Geared Hub1 × 10
    Suspension
    HardtailHardtail
    Front Travel
    63mm63mm
    Brand Site

    merida-bikes.com

    rei.com

    Summary

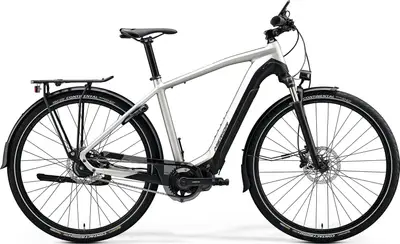

    The Merida eSPRESSO 800 EQ is a 700c aluminum frame hybrid e-bike with modest components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    eSPRESSO LITE II HG, material: aluminium, 700C wheelsize, 142x12mm axle standard, intube, max. 504 Wh

    BB StandardBSA, Threaded

    6061 aluminum

    BB StandardBSA, Threaded

    Fork

    Suntour NCX RL, Air, 63mm suspension travel, Tapered, remote lockout

    Travel63mm

    Spring TypeAir

    SR Suntour NCX32 E-Air with lockout, 63 millimeters

    Travel63mm

    Spring TypeAir

    Bottom Bracket

    included

    Shimano

    Headset

    MERIDA 2333 Neck

    1-1/8 to 1-1/2 in. threadless

    Stem

    XS: Alloy 6061, 31.8 x 80 mm, S: Alloy 6061, 31.8 x 80 mm, M: Alloy 6061, 31.8 x 90 mm, L: Alloy 6061, 31.8 x 100 mm, XL: Alloy 6061, 31.8 x 100 mm

    Handlebar

    MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise

    Co-op Riser, 31.8 mm, 25 mm rise, 8 degree sweep

    Saddle

    MERIDA EXPERT TK, V-mount, incl. MERIDA minitool

    Selle Royal Shadow with gel

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    XS: Co-op aluminum, 31.6 x 300 mm, S: Co-op aluminum, 31.6 x 300 mm, M: Co-op aluminum, 31.6 x 350 mm, L: Co-op aluminum, 31.6 x 350 mm, XL: Co-op aluminum, 31.6 x 350 mm

    Pedals

    VP, VPE-891

    Wellgo aluminum platform with steel spindle

    Groupset
    Rear Derailleur

    Shimano Cues Shadow

    Crank

    Shimano CRE61, 38 teeth, Shimano FC-E6100

    XS: Shimano Cues 32T, 170mm, S: Shimano Cues 32T, 170mm, M: Shimano Cues 32T, 175mm, L: Shimano Cues 32T, 175mm, XL: Shimano Cues 32T, 175mm

    Shifters

    Shimano SW-E6010-R

    Shimano Cues 10-speed

    Cassette

    Shimano SM-GEAR, 19 teeth, 1 speed

    Shimano Cues 10-speed

    Chain

    KMC Z1eHX

    Shimano 10-speed

    Chain Guide

    Sunnywheel SW-CG-173A

    Brakes

    Shimano MT-401-3A, 2 piston

    Shimano Altus hydraulic disc Hydraulic Disc Brake

    Brake Levers

    Shimano

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Co-op aluminum tubeless

    Spokes

    Black stainless

    Front Hub

    Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock

    Shimano 100 mm quick-release

    Rear Hub

    Shimano Alfine 8, 135x9mm width rear hub, 36 spoke holes, Centerlock

    Shimano 135 mm quick-release

    Tires

    Continental Contact Cruiser, 622-50, wire, reflecting line

    Kenda Flintridge, 700c x 40 mm

    Electric Components
    Motor

    Shimano E6100, 60Nm

    Battery

    Shimano E8035, 504Wh

    Display

    Shimano SC-E6100

    Accessories
    Fenders

    Sunnywheel SW-FA311-60E1 (MSB)

    Racks

    MERIDA MIK Carrier with Spring clip & H-Cargo Light

    Lock

    Abus 5650 LH-3 lock

    Stand

    CL-KA98
