MSRP | ($5,382) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid, E-Bike | |
Weight | 59.1 lbs | |
Frame | Aluminum | |
Wheels | Aluminum | |
Wheel Size | 700c | |
| Shimano Hydraulic Disc | ||
| Shimano 600W 85Nm mid-drive | ||
| 750Wh | ||
| Shimano | ||
Drivetrain | Internally Geared Hub | |
Suspension | Hardtail | |
Front Travel | 63mm | |
Brand Site | ||

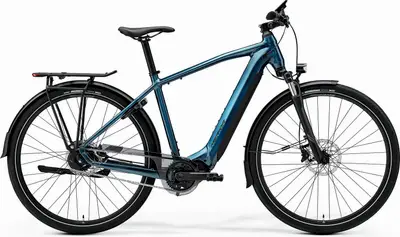

Summary | The Merida eSPRESSO 775 EQ is a 700c aluminum frame hybrid e-bike with modest components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | eSPRESSO LITE IV HG, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12 mm axle standard, intube BB Standard: BSA, Threaded Tire Clearance: 50c | |
|---|---|---|
Fork | SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize Travel: 63mm Spring Type: Coil | |
Bottom Bracket | BSA, threaded | |
Headset | MERIDA 8156 | |
Stem | MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL | |
Handlebar | MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise | |
Saddle | MERIDA EXPERT TK II, V-mount | |
Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback Type: Rigid | |
Pedals | VP VPE-891 |
Crank | Samox P203, 38 teeth | |
|---|---|---|
Shifters | Shimano SW-EN600-R | |
Cassette | Shimano CS-C7000, 27 teeth | |
Chain | KMC Z1e | |
Chain Guide | Sunnywheel SW-CG-173A | |
Brakes | Shimano MT402-3A, 2 piston, Shimano MT402-3A, 2 piston Type: Shimano Hydraulic Disc |
Rims | MERIDA COMP TK, 20 mm inner width, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Front: Continental Contact Cruiser, 622-50, wire, reflecting line, Rear: Continental Contact Cruiser, 622-50, wire, reflecting line | |
Disc Rotors | Shimano RT30, 180 mm |
Motor | Shimano EP6, 85Nm | |
|---|---|---|
Battery | Trendpower Internal Battery 750Wh | |
Display | Shimano SC-EN610 | |
Charger | Simplo EU Charger, 4A |
Lights | Herrmans H-Black MR4 E / Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier | |
|---|---|---|
Fenders | Sunnywheel SW-FA311-60E1 (MSB) | |
Racks | MERIDA MIK HD Carrier with Spring clip | |
Lock | Abus 4750 L | |
Stand | Massload CL-KA98 |
