    eSPRESSO 575 EQ2025 Merida
    Recommended
    MSRP
    ($5,099)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		57.6 lbs
    7.1
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Alivio Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary

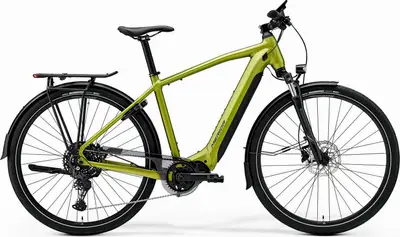

    		The Merida eSPRESSO 575 EQ is a 700c aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eSPRESSO 575 EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eSPRESSO 575 EQ2025 Merida
    Frame

    eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12 mm axle standard, intube

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX E25, Coil, 63 mm suspension travel, 700x52C max. wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA 8156

    Stem

    MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL

    Handlebar

    MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise

    Saddle

    MERIDA EXPERT TK II, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Samox NWP203, 38 teeth

    Shifters

    Shimano CUES U6000

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20 mm inner width, material: aluminium

    Front Hub

    Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line

    Disc Rotors

    Shimano RT10, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Trendpower Internal Battery 750Wh

    Display

    Shimano SC-EN610

    Charger

    Simplo EU Charger, 4A

    Accessories
    Lights

    Herrmans H-Black MR4 E / Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier

    Fenders

    Sunnywheel SW-FA311-60E1 (MSB)

    Racks

    MERIDA MIK HD Carrier with Spring clip

    Lock

    Abus 4750 L

    Stand

    Massload CL-KA98
