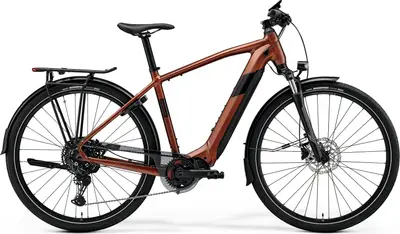

    eSPRESSO 500 EQ2026 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		56.2 lbs
    6.9
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Alivio Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eSPRESSO 500 EQ is a 700c aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eSPRESSO 500 EQ

    Highest gear

    (descending)

    Geometry
    Specs
    eSPRESSO 500 EQ2026 Merida
    Frame

    eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA-8156

    Handlebar

    MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK II, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Samox NWP203, 38 teeth

    Shifters

    Shimano CUES U6000-10

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Chain Guide

    Sunnywheel SW-CG-173A

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Spokes

    Black stainless, black nipples

    Front Hub

    Shimano QC300 / Shimano TC500-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano QC300 / Shimano TC500-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Metropass, 28x2.0, wire, reflecting line

    Disc Rotors

    Shimano RT10, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Shimano EN806, 630Wh

    Display

    Shimano SC-EN610

    Accessories
    Fenders

    Sunnywheel SW-FA311-60E1 (MSB)

    Racks

    MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

    Lock

    Abus 4650 SL

    Stand

    Massload CL-KA98
