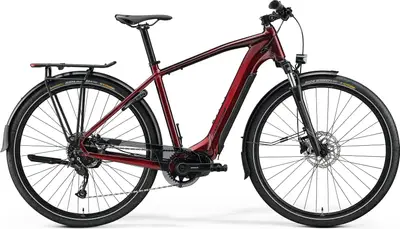

    eSPRESSO 400 EQ2022 Merida
    Recommended
    MSRP
    ($4,238)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    6.6
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Shimano 250W 60Nm mid-drive
    		Shimano 504Wh
    		Alivio
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eSPRESSO 400 EQ is a 700c aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eSPRESSO 400 EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eSPRESSO 400 EQ2022 Merida
    Frame

    eSPRESSO LITE II, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, MUK 37 Hanger

    BB Standard: BSA, Threaded

    Tire Clearance: 50c

    Fork

    SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    BSA, threaded

    Headset

    MERIDA 2346

    Stem

    MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL

    Handlebar

    MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano ALIVIO M3100, SGS

    Crank

    Shimano CRE61, 38 teeth

    Shifters

    Shimano Alivio

    Cassette

    Shimano HG200, 11-36 teeth, 9 speed

    Chain

    KMC e9S

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Front Hub

    Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock

    Rear Hub

    Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line

    Disc Rotors

    Shimano RT10, 180 mm

    Electric Components
    Motor

    Shimano E6100, 60Nm

    Battery

    Shimano E8035, 504Wh

    Display

    Shimano SC-E5000A

    Charger

    Shimano EC-E6002, 2A charging current

    Accessories
    Lights

    Herrmans H-Black MR4 E / Spanninga Commuter Glow XE, STVZO, STVZO, integrated in MERIDA MIK HD carrier

    Fenders

    Sunnywheel SW-FA311-60E1 (MSB)

    Racks

    MERIDA MIK HD, Spring clip, Spanninga rear light

    Lock

    Abus 5650 LH-3 lock

    Stand

    Massload CL-KA98
