Bike Comparison
    MSRP
    ($2,532)$999
    Where to Buy
    $1

    At

    $999

    At REI

    Category
    Hybrid, E-BikeHybrid
    Weight
    44.9 lbs
    5.8
    5.1
    AluminumAluminum
    Fork
    Suntour NEX (coil)Suntour (air)
    Wheels
    AluminumAluminum
    Wheel Size
    700c700c
    Brakes
    Hydraulic DiscHydraulic Disc
    Shimano 250W 40Nm mid-drive
    Shimano 418Wh
    Groupset
    Altus, ShimanoCUES, Shimano
    Drivetrain
    1 × 91 × 10
    Suspension
    HardtailHardtail
    Front Travel
    63mm63mm
    Brand Site

    merida-bikes.com

    rei.com

    Summary

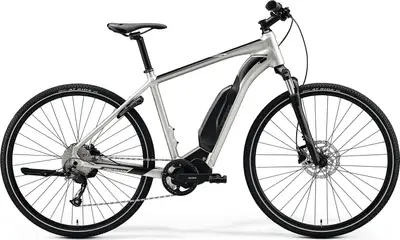

    The Merida eSPRESSO 200 SE is a 700c aluminum frame hybrid e-bike with mid-range components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    2020 eSPRESSO 200 SE

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    eSPRESSO LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, external, max. 504 Wh

    BB StandardBSA, Threaded

    6061 aluminum

    BB StandardBSA, Threaded

    Fork

    Suntour NEX-PM-DS, Coil, 63mm suspension travel

    Travel63mm

    Spring TypeAir

    SR Suntour NCX32 E-Air with lockout, 63 millimeters

    Travel63mm

    Spring TypeAir

    Bottom Bracket

    included, no

    Shimano

    Headset

    MERIDA 2346 Neck

    1-1/8 to 1-1/2 in. threadless

    Stem

    XS: Alloy 6061, 31.8 x 80 mm, S: Alloy 6061, 31.8 x 80 mm, M: Alloy 6061, 31.8 x 90 mm, L: Alloy 6061, 31.8 x 100 mm, XL: Alloy 6061, 31.8 x 100 mm

    Handlebar

    MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise

    Co-op Riser, 31.8 mm, 25 mm rise, 8 degree sweep

    Saddle

    Selle Royal Shadow with gel

    Seatpost

    MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback

    XS: Co-op aluminum, 31.6 x 300 mm, S: Co-op aluminum, 31.6 x 300 mm, M: Co-op aluminum, 31.6 x 350 mm, L: Co-op aluminum, 31.6 x 350 mm, XL: Co-op aluminum, 31.6 x 350 mm

    Pedals

    VP, VPE-891

    Wellgo aluminum platform with steel spindle

    Groupset
    Rear Derailleur

    Shimano Altus RDM2000

    Shimano Cues Shadow

    Crank

    Shimano CRE50, 38 teeth, with chain guard, Shimano FC-E5010

    XS: Shimano Cues 32T, 170mm, S: Shimano Cues 32T, 170mm, M: Shimano Cues 32T, 175mm, L: Shimano Cues 32T, 175mm, XL: Shimano Cues 32T, 175mm

    Shifters

    Shimano Altus rapidfire

    Shimano Cues 10-speed

    Cassette

    Shimano HG400, 12-36 teeth, 9 speed

    Shimano Cues 10-speed

    Chain

    KMC e9S

    Shimano 10-speed

    Brakes

    Shimano MT-200

    Shimano Altus hydraulic disc Hydraulic Disc Brake

    Brake Levers

    Shimano

    Wheels
    Rims

    MERIDA COMP TK, 20mm inner width, material: aluminium

    Co-op aluminum tubeless

    Front Hub

    Shimano 100 mm quick-release

    Rear Hub

    Shimano 135 mm quick-release

    Tires

    Continental AT RIDE

    Kenda Flintridge, 700c x 40 mm

    Disc Rotors

    Shimano RT10

    Electric Components
    Motor

    Shimano E5000, 40Nm

    Battery

    Shimano E8014, 418Wh

    Display

    w/o display

    Accessories
    Lights

    CG-119PG-BLACK(1) / CG-404RG-BLK

    Lock

    Abus 5650 LH-3 lock

    Stand

    CL-KA98
