    eSPEEDER 400 EQ2022 Merida
    Recommended
    MSRP
    ($3,824)
    Where to Buy
    —
    $1

    At

    Category
    		Fitness, E-Bike
    4.5
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Alivio Hydraulic Disc
    		MAHLE 40Nm hub-drive
    		MAHLE 250Wh
    		Deore
    Drivetrain
    		1 × 10
    Brand Site

    merida-bikes.com

    Summary

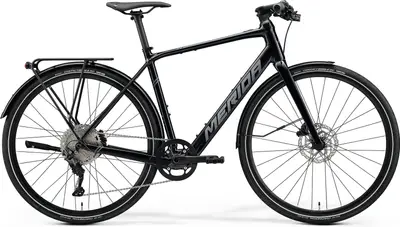

    		The Merida eSPEEDER 400 EQ is a 700c aluminum frame fitness e-bike with upper mid-range components and shimano alivio hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    eSPEEDER 400 EQ
    Other Fitness bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    eSPEEDER 400 EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eSPEEDER 400 EQ2022 Merida
    Frame

    eSPEEDER LITE, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 68mm, Threaded

    Tire Clearance: 45c

    Fork

    MERIDA SPEEDER CF, MDF09, material: carbon, 700x40C w/ fender max wheelsize

    Bottom Bracket

    EB2401 BSA 68mm

    Headset

    VP MH-P16

    Stem

    MERIDA EXPERT IR, material: aluminium, 31.8mm diameter, 5° stem angle, 80 mm- XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 620mm width, Flat

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano Deore M5120, SGS

    Crank

    MERIDA COMP TK, 42 teeth, 165 mm-XS, 170 mm-S/M/L/XL

    Shifters

    Shimano Deore M4100

    Cassette

    Shimano CS-M4100, 11-46 teeth, 10 speed

    Chain

    KMC e10s

    Brakes

    Shimano MT-200 / UR300, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium

    Spokes

    Black stainless

    Front Hub

    VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock

    Rear Hub

    VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock

    Tires

    Front: Continental Contact Urban, 700Cx40, wire, Rear: Continental Contact Urban, 700Cx40, wire

    Disc Rotors

    Shimano RT10 / Shimano RT26, 180 mm

    Electric Components
    Motor

    Mahle X35+ Hub Engine, 40Nm

    Battery

    Mahle B1-D, 250Wh

    Charger

    Mahle CHARGER-C, 2A charging current

    Accessories
    Lights

    Lezyne E-Bike Power E115 / Lezyne E-Bike Super Bright, StVZO, reverse MERIDA Custom Mount, StVZO

    Fenders

    SW-FA-311-45FARE1 with SW503F1, fender stay SW-FV-513, 807B ??? alloy rail: SW809-01

    Racks

    MASSLOAD CL-645

    Stand

    Atranvelo 1219-PC-7
