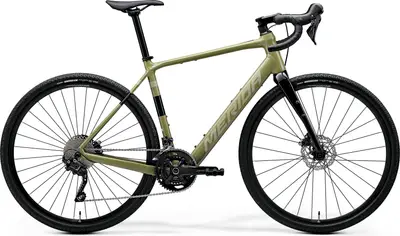

    eSILEX 4002024 Merida
    Recommended
    MSRP
    ($3,556)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel, E-Bike
    Weight
    		31.7 lbs
    3.1
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		45c
    		Shimano GRX 400 Hydraulic Disc
    		MAHLE hub-drive
    		MAHLE 237Wh
    		GRX 600, GRX 400
    Drivetrain
    		2 × 10
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eSILEX 400 is an aluminum frame gravel e-bike with mid-range components and shimano grx 400 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    eSILEX 400
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    eSILEX 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eSILEX 4002024 Merida
    Frame

    eSILEX LITE III, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 68mm, Threaded

    Tire Clearance: 45c

    Fork

    MERIDA SILEX CF2, carbon, max. 700x42C / 700x35C (with fender) / max. 50x650B wheelsize

    Bottom Bracket

    Shimano RS501 BSA

    Headset

    MERIDA 8158

    Stem

    MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6° stem angle, 80 mm all sizes

    Handlebar

    MERIDA EXPERT GRII, material: aluminium, 400mm (XS-S), 420mm (M), 440mm (L/XL)

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback

    Type: Rigid

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano GRX400

    Front Derailleur

    Shimano GRX400

    Crank

    Shimano GRX600, 46-30 teeth, 170 mm-XS/S/SM/ML, 175 mm-L/XL

    Cassette

    Shimano CS-HG50, 11-36 teeth, 10 speed

    Chain

    KMC e10

    Brakes

    Shimano GRX400, 2 piston

    Type: Shimano GRX 400 Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano TC500, 100x12mm width front hub, 28 spoke holes, Centerlock

    Rear Hub

    Shimano TC500, 100x12mm width front hub, 28 spoke holes, Centerlock

    Tires

    Front: Maxxis Rambler, 700Cx40, fold, EXO, Rear: Maxxis Rambler, 700Cx40, fold, EXO

    Disc Rotors

    Shimano RT10 / Shimano RT26, 160 mm

    Electric Components
    Motor

    Mahle X30 Drive Unit

    Battery

    Mahle ix2 237Wh, 237Wh

    Charger

    Mahle X30 Charger

    Accessories
    Lights

    USB rechargable Chance Good CG-119PG-BLACK(1) / USB rechargable Chance Good CG-404RG-BLK
