    eONE-TWENTY 900E2019 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		48.1 lbs
    Frame
    		RockShox Pike RCT3
    		RockShox Deluxe
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano XT Hydraulic Disc
    		Shimano 250W 70Nm mid-drive
    		Shimano 504Wh
    		XT Di2
    Drivetrain
    		1 × 11 Electronic
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		-
    Brand Site

    merida-bikes.com

    Summary

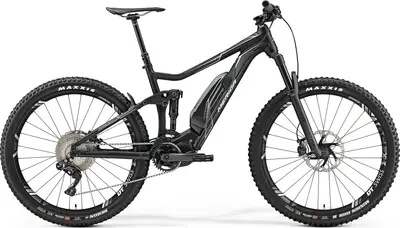

    		The Merida eONE-TWENTY 900E is a 27.5″ full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-TWENTY 900E
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-TWENTY 900E

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-TWENTY 900E2019 Merida
    Frame

    eONE-TWENTY

    Fork

    Rock Shox Pike RCT3, Air, 130mm suspension travel, Tapered

    Travel: 130mm

    Spring Type: Air

    Shock

    Rock Shox Deluxe RT, platform

    Headset

    FSA NO.55EP neck, 2191017484

    Handlebar

    MERIDA Expert eTR, 780mm width, 20mm rise

    Saddle

    MERIDA Expert CC

    Seatpost

    Rock Shox Reverb, 30.9mm diameter, 0mm setback, 100mm travel seatpost - M/L/XL 150mm travel seatpost

    Type: Dropper

    Pedals

    VP, VPE-537

    Groupset
    Rear Derailleur

    Shimano XT Di2

    Front Derailleur

    no

    Crank

    Shimano CRE80-B, 34 teeth

    Shifters

    no / Shimano XT Di2

    Cassette

    Shimano M8000, 11-46 teeth, 11 speed

    Chain

    KMC X11e

    Chain Guide

    Shimano SM-CDE80

    Brakes

    Shimano XT fin

    Type: Shimano XT Hydraulic Disc

    Brake Levers

    attached

    Wheels
    Rims

    DT Swiss Spline HX1501, 110x15mm width front hub, 148x12mm width rear hub, 35mm inner width, 6 bolt

    Spokes

    attached

    Tires

    Maxxis DHR II, 27.5x2.8 ", fold, 3C EXO TR / Maxxis Rekon, 27.5+ 2.8", fold, 3C EXO TR

    Electric Components
    Motor

    Shimano E8000, 70Nm

    Battery

    Shimano E8010, 504 Wh

    Display

    Shimano SC-E8000
