 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail, E-Bike | |
Weight | 49.4 lbs | |
| Aluminum | ||
Fork | RockShox Pike RCT3 | |
Shock | RockShox Deluxe | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Mechanical Disc | |
| Shimano 250W 70Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | XT Di2, Shimano | |
Drivetrain | 1 × 11 Electronic | |
Suspension | Full | |
Front Travel | 130mm | |
Rear Travel | 120mm | |
Brand Site | ||

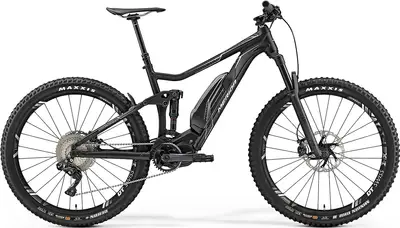

Summary | The Merida eOne-Twenty 900-E is a 27.5″ aluminum frame full suspension trail e-bike with high-end components and mechanical disc brakes. | |
Based on frame geometry and build specs.
Frame | Aluminum | |
|---|---|---|
Fork | RockShox Pike RCT3, Air, 110x15mm | |
Shock | RockShox Deluxe RT, platform, trunnion mount | |
Headset | FSA No. 55EP Neck | |
Stem | Merida Expert eTR, 35mm diameter, 0° stem angle | |
Handlebar | Merida Expert eTR, 20mm rise, 780mm width | |
Saddle | Merida Expert CC | |
Seatpost | RockShox Reverb, 100mm travel (S), 150mm travel (M, L, XL) | |
Pedals | VP VPE-537 | |
Grips | Merida Expert EC |
Rear Derailleur | Shimano XT Di2 | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Shimano E8050, hollow, 170mm | |
Shifters | Shimano XT Di2 | |
Cassette | Shimano M8000, 11-46 tooth, 11-speed | |
Chain | KMC X11e | |
Chain Guide | N/A | |
Brakes | Shimano XT with RT86 rotors (203mm front and rear) | |
Brake Levers | Shimano XT |
Rims | DT Swiss Spline HX1501 wheelset, 35mm inner width | |
|---|---|---|
Spokes | DT Swiss Spline HX1501 wheelset | |
Front Hub | DT Swiss Spline HX1501 wheelset, Centerlock, 110x15mm front, 148x12mm rear | |
Rear Hub | DT Swiss Spline HX1501 wheelset, Centerlock, 110x15mm front, 148x12mm rear | |
Tires | Front: Maxxis DHR II, 27.5 x 2.8", folding, 3C, EXO, TR, Rear: Maxxis Rekon, 27.5 x 2.8", folding, 3C, EXO, TR |
Motor | Shimano Steps E8000, max output 70Nm (250W) | |
|---|---|---|
Battery | Shimano E8010 with Abus key lock |
