Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    MSRP
    Where to Buy
    $1

    At

    Category
    Trail, E-Bike
    Weight
    48.4 lbs
    Frame
    RockShox Revelation RC
    RockShox Deluxe
    Wheels
    Aluminum
    Wheel Size
    27.5″
    Shimano SLX Hydraulic Disc
    Shimano 250W 70Nm mid-drive
    Shimano 500Wh
    XT, SLX
    Drivetrain
    1 × 11
    Suspension
    Full
    Front Travel
    130mm
    Rear Travel
    120mm
    Brand Site

    merida-bikes.com

    Summary

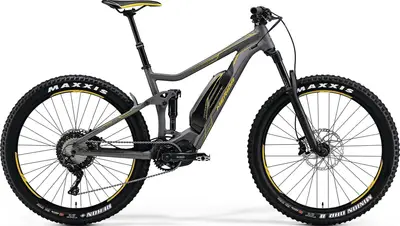

    The Merida eONE-TWENTY 800 is a 27.5″ full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-TWENTY 800
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-TWENTY 800

    Highest gear

    (descending)

    Geometry
    Specs
    Frame

    eONE-TWENTY

    Fork

    Rock Shox Revelation RC B SoloAir-130mm travel

    Travel130mm

    Spring TypeAir

    Shock

    Rock Shox Deluxe RT-A2

    Travel120mm

    Headset

    FSA NO.55EP neck

    Stem

    Merida Expert SS, 55mm length

    Handlebar

    MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°

    Saddle

    MERIDA Sport 5

    Seatpost

    MERIDA EXPERT Dropper 30.9mm

    TypeDropper

    Pedals

    VPE-537

    Groupset
    Rear Derailleur

    Shimano XT M8000 Shadow+

    Crank

    Shimano CRE80-B 34, SM-CDE 80 Kettenführung

    Shifters

    Shimano SLX 11

    Cassette

    Shimano SLX, 11 speed, 11-46 teeth

    Chain

    KMC X11e

    Chain Guide

    Shimano SM-CDE 80

    Brakes

    Shimano SLX hydraulic disc brakes with 203mm rotors

    TypeShimano SLX Hydraulic Disc

    Brake Levers

    attached

    Wheels
    Rims

    MERIDA EXPERT TP

    Spokes

    Black stainless

    Front Hub

    15mm front hub, Shimano Deore, Boost standard centrelock rear

    Rear Hub

    15mm front hub, Shimano Deore, Boost standard centrelock rear

    Tires

    Maxxis DHR 27.5"+ 2.8" folding / Maxxis Rekon 27.5"+ 2.8" folding

    Electric Components
    Motor

    Shimano [E8000]

    Battery

    Shimano E8010 500Wh

    Remote

    Shimano SC-E8000, LCD color display showing color coded assist levels, time, battery status, speed, distance, total distance, riding time, estimated range, range overview, error messages, cadence, power input of rider in watts, and calorie consumption

    Display

    Shimano SC-E8000
