    eONE-TWENTY 5002018 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		48.0 lbs
    Frame
    		RockShox Revelation RC
    		RockShox Deluxe R
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Deore Hydraulic Disc
    		Shimano 250W 70Nm mid-drive
    		Shimano 500Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary

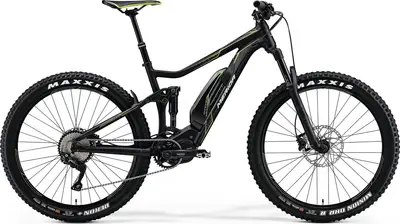

    		The Merida eONE-TWENTY 500 is a 27.5″ full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-TWENTY 500
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-TWENTY 500

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-TWENTY 5002018 Merida
    Frame

    eONE-TWENTY

    Fork

    Rock Shox Revelation RC B SoloAir 130mm travel

    Travel: 130mm

    Spring Type: Air

    Shock

    Rock Shox Deluxe R-A2

    Travel: 120mm

    Headset

    FSA NO.55EP neck

    Stem

    Merida Expert SS, 55mm length

    Handlebar

    MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°

    Saddle

    MERIDA Sport 5

    Seatpost

    MERIDA EXPERT Dropper 30.9mm

    Type: Dropper

    Pedals

    VPE-537

    Groupset
    Rear Derailleur

    Shimano Deore Shadow+

    Crank

    Shimano CRE80-B 34

    Shifters

    Shimano Deore

    Cassette

    Shimano HG500, 10 speed, 11-42 teeth

    Chain

    KMC X11e

    Chain Guide

    N/A

    Brakes

    Shimano M500 hydraulic disc brakes, 203mm / 180mm rotors

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    attached

    Wheels
    Rims

    MERIDA EXPERT TP

    Spokes

    Black stainless

    Front Hub

    15mm front hub, Shimano Deore, Boost standard centrelock rear

    Rear Hub

    15mm front hub, Shimano Deore, Boost standard centrelock rear

    Tires

    Maxxis DHR 27.5"+ 2.8" folding / Maxxis Rekon 27.5"+ 2.8" folding

    Electric Components
    Motor

    Shimano [E8000]

    Battery

    Shimano E8010 500Wh

    Remote

    Shimano SC-E8000, LCD color display showing color coded assist levels, time, battery status, speed, distance, total distance, riding time, estimated range, range overview, error messages, cadence, power input of rider in watts, and calorie consumption

    Display

    Shimano SC-E8000
