    eONE-SIXTY LIMITED2026 Merida
    Recommended
    MSRP
    ($10,696)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		46.1 lbs
    9.5
    Frame
    		Carbon
    		Fox Factory Float 36
    		Fox Float X Factory
    Wheels
    		Carbon
    Wheel Size
    		29″ / 27.5″
    		Shimano XTR Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		600Wh
    		XTR Di2, Dura-Ace Di2
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		174mm
    Brand Site

    merida-bikes.com

    Summary

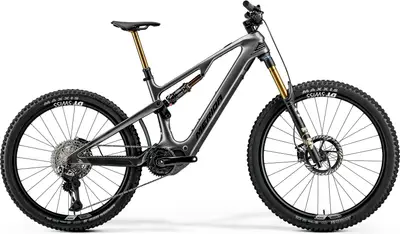

    		The Merida eONE-SIXTY LIMITED is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY LIMITED
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    eONE-SIXTY LIMITED

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY LIMITED2026 Merida
    Frame

    eONE-SIXTY CF4 III, material: carbon, 174mm suspension travel, 29” x 2,6” max. wheelsize, 148x12mm axle standard, intube, max. 600 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    Fox 36 Float Factory, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Spring Type: Air

    Shock

    Fox Float X Factory, platform

    Travel: 174mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA INTEGRATED neck w/ Blocklock

    Handlebar

    Race Face Era, 780mm width

    Saddle

    Prologo Nago R4 Nack 147mm, V-mount adapter, incl. MERIDA minitool

    Seatpost

    Fox Transfer Factory Series, 34,9mm diameter, 0mm setback, travel seatpost XSHORT: 150mm, SHORT/MID: 180mm, LONG: 210mm, XLONG: 240mm

    Type: Dropper

    Pedals

    VP 532

    Groupset
    Rear Derailleur

    Shimano XTR Di2

    Crank

    FSA 1x Steel Chainring, 36 teeth

    Shifters

    Shimano XTR Di2 M9250

    Cassette

    Shimano XTR, 10-51 teeth, 12 speed

    Chain

    Shimano XTR M9100

    Brakes

    Shimano XTR, 4 piston

    Type: Shimano XTR Hydraulic Disc

    Wheels
    Rims

    DT Swiss HXC 1501, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, CenterLock, Microspline, material: carbon, Tubeless ready (tubeless tape and valves included)

    Tires

    Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip

    Disc Rotors

    Shimano CL900 / Shimano CL900 with Magnet, 203 mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Trendpower TPS-C15-58SD, 600Wh integrated

    Display

    Shimano SC-EM800

    Accessories
    Fenders

    EOF-204
