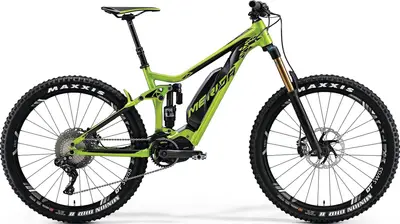

    eONE-SIXTY 900E2018 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		48.7 lbs
    Frame
    		Fox Float 36
    		Fox Float X2 Factory
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Saint Hydraulic Disc
    		Shimano 250W 70Nm mid-drive
    		Shimano 500Wh
    		XT Di2
    Drivetrain
    		1 × 11 Electronic
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		160mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eONE-SIXTY 900E is a 27.5″ full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 900E
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-SIXTY 900E

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-SIXTY 900E2018 Merida
    Frame

    eONE-SIXTY

    Fork

    FOX Float 36 with Boost 15mm X 110mm bolt through HSC, LSC, Kashima coating

    Travel: 160mm

    Spring Type: Air

    Shock

    Fox Factory Float X2

    Travel: 160mm

    Headset

    FSA NO.57/55E neck

    Stem

    Merida Expert SS, 45mm length

    Handlebar

    MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°

    Saddle

    MERIDA EXPERT

    Seatpost

    Rock Shox Reverb Stealth 30.9mm

    Type: Dropper

    Pedals

    VPE-537

    Groupset
    Rear Derailleur

    Shimano XT Di2 RD-M8050

    Crank

    Shimano CRE80-B 34, SM-CDE 80 Chainguide

    Shifters

    Shift Switch XT Di2

    Cassette

    Shimano XT, 11 speed, 11-46 teeth

    Chain

    KMC X11e

    Chain Guide

    Shimano SM-CDE 80

    Brakes

    Shimano Saint hydraulic disc brakes, 203mm 6 bolt rotors

    Type: Shimano Saint Hydraulic Disc

    Brake Levers

    attached

    Wheels
    Rims

    DT Swiss HX1501 Spline one 35 boost wheelset

    Spokes

    DT Swiss

    Front Hub

    DT Swiss HX 1501, Boost front and rear

    Rear Hub

    DT Swiss HX 1501, Boost front and rear

    Tires

    Maxxis DHR II 27.5" x 2.8"

    Electric Components
    Motor

    Shimano [E8000]

    Battery

    Shimano E8010 500Wh

    Remote

    Shimano SC-E8000, LCD color display showing color coded assist levels, time, battery status, speed, distance, total distance, riding time, estimated range, range overview, error messages, cadence, power input of rider in watts, and calorie consumption

    Display

    Shimano SC-E8000
