Bike Comparison
    eONE-SIXTY 80002020 Merida
    Recommended
    MSRP
    ($7,408)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		49.2 lbs
    6.8
    Frame
    		Carbon
    Fork
    		Marzocchi Bomber Z1
    Shock
    		RockShox Super Deluxe Select+
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    		Shimano 250W 70Nm mid-drive
    Battery
    		Shimano 504Wh
    Groupset
    		XT, Shimano
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary

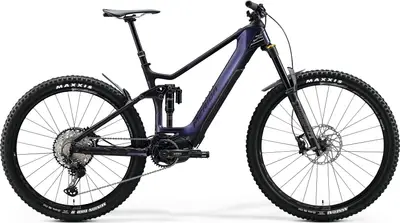

    		The Merida eONE-SIXTY 8000 is a 27.5″ carbon frame full suspension enduro e-bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 8000
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eONE-SIXTY 8000

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 80002020 Merida
    Frame

    eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    Marzocchi Z1 E-Bike, Air, 160mm suspension travel, Tapered, 51mm fork offset

    Shock

    Rock Shox Super Deluxe Select+, platform

    Bottom Bracket

    included

    Headset

    MERIDA 1901

    Handlebar

    MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise

    Saddle

    MERIDA Expert CC, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost

    Pedals

    VP, VPE-537

    Groupset
    Rear Derailleur

    Shimano XT RDM8100 Shadow+

    Crank

    Shimano CRE80-12-B, 34 teeth, Shimano FC-E8000

    Shifters

    Shimano SL -MT800-IL / Shimano XT 12

    Cassette

    Shimano M7100, 10-51 teeth, 12 speed

    Chain

    CN-M7100

    Brakes

    Shimano SLX

    Wheels
    Rims

    Fulcrum E-METAL 700, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, material: aluminium, Tubeless ready

    Front Hub

    MERIDA COMP TR

    Rear Hub

    MERIDA COMP TR

    Tires

    Maxxis Assegai / Maxxis DHR II

    Disc Rotors

    Shimano RT64 / Shimano RTEM600

    Electric Components
    Motor

    Shimano E8000, 70Nm

    Battery

    Shimano E8035, 504Wh

    Display

    Shimano SC-E8000

    Accessories
    Lights

    CG-119PG-BLACK(1) / CG-404RG-BLK

    Fenders

    C093-02F + C093-02R
