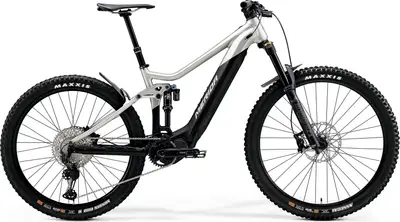

    eONE-SIXTY 7002023 Merida
    Recommended
    MSRP
    ($7,736)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    6.0
    Frame
    		Aluminum
    		Marzocchi Bomber Z1
    		Fox Float DPX2 Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano SLX Hydraulic Disc
    		Shimano 85Nm mid-drive
    		Shimano 630Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eONE-SIXTY 700 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 700
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eONE-SIXTY 700

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 7002023 Merida
    Frame

    eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger

    BB Standard: BSA, 73mm, Threaded

    Fork

    Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Spring Type: Air

    Shock

    FOX Float DPX2 Performance, platform

    Travel: 150mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Stem

    MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA EXPERT CC, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XT RDM8100 Shadow+ 12

    Crank

    Shimano CRE80-12-B, 34 teeth

    Shifters

    Shimano SL -MT500-IL / Shimano Deore M6100

    Cassette

    Shimano M6100, 10-51 teeth, 12 speed

    Chain

    KMC e12T EPT

    Brakes

    Shimano SLX, 4 piston

    Type: Shimano SLX Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Rear Hub

    Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.6 ", fold, 3C EXO+ TR

    Disc Rotors

    Shimano RT64 / Shimano RTEM600, 203 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Shimano E8036 630Wh / Shimano E8035 504Wh for XS only

    Display

    Shimano SC-E7000

    Charger

    Shimano EC-E8004, 4A charging current

    Accessories
    Lights

    Lezyne E-Bike Power E115 / Dlight CG-214RG, StVZO, reverse MERIDA Custom Mount, STVZO, USB

    Fenders

    C093-02F + C093-02R
