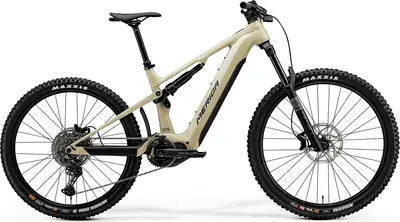

    eONE-SIXTY 5752025 Merida
    Recommended
    MSRP
    ($5,348)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		61.3 lbs
    5.6
    Frame
    		Aluminum
    		RockShox Psylo
    		RockShox Deluxe
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Tektro Gemini Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		Deore, CUES
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		160mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eONE-SIXTY 575 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 575
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    eONE-SIXTY 575

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 5752025 Merida
    Frame

    eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Shock

    Rock Shock Deluxe

    Travel: 160mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck w/ Blocklock

    Handlebar

    MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB

    Saddle

    MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-533

    Groupset
    Rear Derailleur

    Shimano Cues U6000, GS

    Crank

    FSA 1x Steel Chainring, 36 teeth

    Shifters

    Shimano SL: MT500-L

    Cassette

    Shimano Cues LG400, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Tektro Gemini M535, 4 piston

    Type: Tektro Gemini Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC600-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip

    Disc Rotors

    Tektro TR203-45, 203mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

    Display

    Shimano SC-EM800
