Bike Comparison
    eONE-SIXTY 50002020 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		50.5 lbs
    6.0
    Frame
    		Carbon
    Fork
    		RockShox 35 Gold RL
    Shock
    		RockShox Super Deluxe Select+
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    		Shimano 250W 60Nm mid-drive
    Battery
    		Shimano 504Wh
    Groupset
    		Deore, Shimano
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary

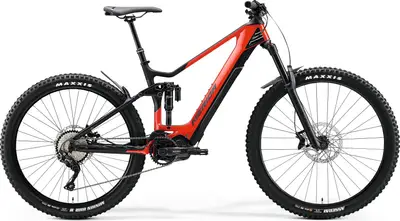

    		The Merida eONE-SIXTY 5000 is a 27.5″ carbon frame full suspension enduro e-bike with upper mid-range components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 5000
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-SIXTY 5000

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-SIXTY 50002020 Merida
    Frame

    eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 51mm fork offset

    Shock

    Rock Shox Super Deluxe Select+, platform

    Bottom Bracket

    included

    Headset

    MERIDA 1901

    Handlebar

    MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise

    Saddle

    MERIDA Comp CC, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 125mm travel seatpost

    Pedals

    VP, VPE-537

    Groupset
    Rear Derailleur

    Shimano Deore Shadow+

    Crank

    Shimano CRE70-B, 34 teeth, Shimano FC-E8000

    Shifters

    Shimano Deore

    Cassette

    Shimano HG500, 11-42 teeth, 10 speed

    Chain

    CNHG54

    Brakes

    Shimano MT-520, 4 piston

    Wheels
    Rims

    MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano Deore, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano Deore, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Maxxis Assegai, 29x2.5 ", fold, 3C EXO+

    Electric Components
    Motor

    Shimano E7000, 60Nm

    Battery

    Shimano E8035, 504Wh

    Display

    Shimano SC-E7000

    Accessories
    Fenders

    C093-02F + C093-02R
