Compare: 2024 Merida eONE-SIXTY 500 SE

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	eONE-SIXTY 500 SE2024 Merida	Recommended

MSRP	($5,920)
Where to Buy	— $1 At
Category	Enduro, E-Bike
Weight	58.9 lbs
	5.7
Frame	Aluminum
	RockShox 35 Gold RL
	RockShox Deluxe Select+
Wheels	Aluminum
Wheel Size	29″ / 27.5″
	SRAM DB8 Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	Shimano 630Wh
	NX Eagle
Drivetrain	1 × 12
Suspension	Full
Front Travel	160mm
Rear Travel	150mm
Brand Site	merida-bikes.com

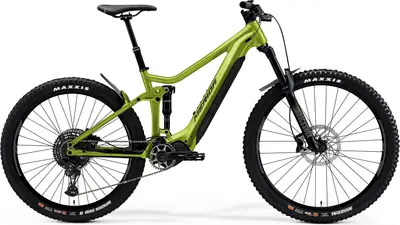

Summary	The Merida eONE-SIXTY 500 SE is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

eONE-SIXTY 500 SE

Other Enduro bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

eONE-SIXTY 500 SE

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	eONE-SIXTY 500 SE2024 Merida

Frame	eONE-SIXTY LITE III, material: aluminium, 150 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube BB Standard: BSA, 73mm, Threaded
Fork	Rock Shox 35 Gold, Air, 160 mm suspension travel, Tapered, 44 mm fork offset, 29x2.8" max. wheelsize Travel: 160mm Spring Type: Air
Shock	Rock Shox Deluxe Select+, platform Travel: 150mm
Bottom Bracket	BSA, 73mm, threaded
Headset	MERIDA 8152
Stem	MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar	MERIDA EXPERT eTR, 780 mm width, 20 mm rise
Saddle	MERIDA COMP SL, V-mount
Seatpost	MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, XS/S 100 mm travel seatpost - M/L 125 mm travel seatpost - XL 150 mm travel seatpost Type: Dropper
Pedals	VP VPE-537

Groupset

Rear Derailleur	SRAM NX Eagle
Crank	Samox EMA04, 34 teeth
Shifters	Limotech RM10 (For SRAM mmX) / SRAM NX Eagle 12
Cassette	SRAM PG-1210 Eagle, 10-50 teeth, 12 speed
Chain	SRAM SX Eagle
Brakes	SRAM DB8, 4 piston Type: SRAM DB8 Hydraulic Disc

Wheels

Rims	MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes	Black stainless
Front Hub	Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Rear Hub	Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Tires	Front: Kenda Regolith, 29x2.4", wire, Rear: Kenda Regolith, 27.5x2.6", wire
Disc Rotors	SRAM CenterLine, 200 mm

Electric Components

Motor	Shimano EP6, 85Nm
Battery	Shimano EN806 630Wh, Shimano EN805 504Wh for XS only
Display	Shimano SC-EN600
Charger	Shimano EC-E6002, 2A charging current

Accessories

Lights	Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / Chance Good USB CG-214RG
Fenders	C093-02F + C093-02R
