    eONE-SIXTY 5002024 Merida
    Recommended
    MSRP
    ($4,991)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    5.5
    Frame
    		Aluminum
    		RockShox 35 Gold RL
    		RockShox Deluxe Select+
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano Deore Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		Deore
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary

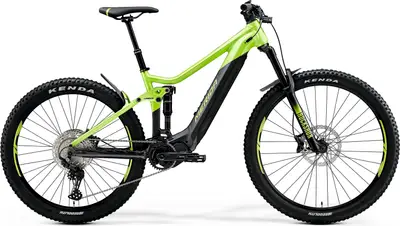

    		The Merida eONE-SIXTY 500 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 500
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-SIXTY 500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 5002024 Merida
    Frame

    eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube *

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.8" max wheelsize

    Travel: 160mm

    Spring Type: Air

    Shock

    Rock Shox Deluxe Select+, platform

    Travel: 150mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA-8152

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano Deore RDM5100 11

    Crank

    Shimano CRE70-B, 34 teeth, Shimano FCEM600

    Shifters

    Shimano SL -MT500-IL

    Cassette

    Shimano M5100, 11-51 teeth, 11 speed

    Chain

    KMC e11S EPT

    Brakes

    Shimano M4100, 4 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Kenda Regolith, 29x2.4", wire

    Disc Rotors

    Shimano RT30 / Shimano RTEM300, 203 mm

    Electric Components
    Motor

    Shimano DU-EP600, 85Nm

    Battery

    Shimano EN806 630Wh

    Display

    Shimano SC-EN500

    Accessories
    Fenders

    C093-02F + C093-02R
