    eONE-SIXTY 4002026 Merida
    Recommended
    MSRP
    ($4,991)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		57.8 lbs
    5.5
    Frame
    		Aluminum
    		RockShox Psylo
    		RockShox Deluxe
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		SRAM Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		Deore, CUES
    Drivetrain
    		1 × 9
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		174mm
    Brand Site

    merida-bikes.com

    Summary

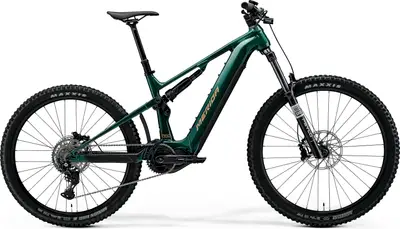

    		The Merida eONE-SIXTY 400 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 400
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    eONE-SIXTY 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 4002026 Merida
    Frame

    eONE-SIXTY LITE IV, material: aluminium, 174mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Shock

    Rock Shock Deluxe

    Travel: 174mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck w/ Blocklock

    Handlebar

    MERIDA EXPERT eTR, 780mm width

    Saddle

    MERIDA COMP SL, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, travel seatpost: 125mm (XS), 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

    Type: Dropper

    Pedals

    VP VPE-533

    Groupset
    Rear Derailleur

    Shimano Cues U4000, GS

    Crank

    FSA 1x Steel Chainring, 36 teeth

    Shifters

    Shimano SL -MT500-L

    Cassette

    Shimano LG400-9, 11-46 teeth, 9 speed

    Chain

    Shimano LG500

    Brakes

    SRAM DB4 stealth, 4 piston

    Type: SRAM Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

    Spokes

    Black stainless, black nipples

    Front Hub

    Shimano TC500-B, 15x100mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500, 12x148mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip

    Disc Rotors

    SRAM CenterLine, 200mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Shimano EN806, 630Wh

    Display

    Shimano SC-EN500

    Accessories
    Fenders

    EOF-204
