MSRP | ($5,987) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| RockShox Psylo | ||
| RockShox Deluxe | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| Tektro Gemini Hydraulic Disc | ||
| Shimano 600W 85Nm mid-drive | ||
| Shimano 630Wh | ||
| CUES | ||
Drivetrain | 1 × 9 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 160mm | |
Brand Site | ||

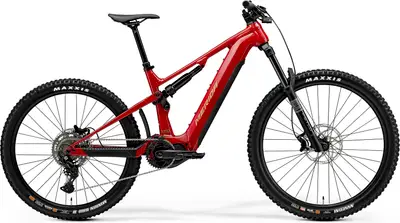

Summary | The Merida eONE-SIXTY 400 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize Travel: 160mm | |
Shock | Rock Shock Deluxe Travel: 160mm | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | Acros ICR MERIDA EXTERNAL neck w/ Blocklock | |
Stem | MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0ﾰ stem angle, Supernova mount, 40 mm all sizes | |
Handlebar | MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB | |
Saddle | MERIDA COMP SL, 28% recycled material, V-mount | |
Seatpost | MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost - XL: 230mm travel seatpost Type: Dropper | |
Pedals | VP VPE-533 |
Rear Derailleur | Shimano Cues U4000, GS | |
|---|---|---|
Crank | FSA 1x Steel Chainring, 36 teeth | |
Shifters | Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) / Shimano Cues U4000-9 | |
Cassette | Shimano LG400-9, 11-46 teeth, 9 speed | |
Chain | Shimano LG500 | |
Brakes | Tektro Gemini M535, 4 piston Type: Tektro Gemini Hydraulic Disc |
Rims | MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5" | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock | |
Tires | Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra | |
Disc Rotors | Tektro TR203-45, 203mm |
Motor | Shimano EP801, 85Nm | |
|---|---|---|
Battery | Shimano EN806 630Wh | |
Display | Shimano SC-EN500 | |
Charger | Shimano EC-E6002, 2A charging current |
Lights | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / CG-404RG-BLK |
|---|
