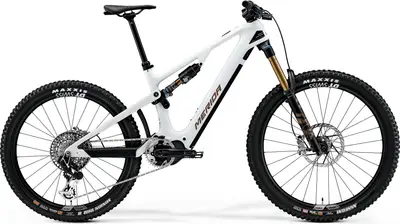

Compare: 2025 Merida eONE-SIXTY 10K

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	eONE-SIXTY 10K2025 Merida	Recommended

MSRP	($14,127)
Where to Buy	— $1 At
Category	Enduro, E-Bike
Weight	48.9 lbs
	9.6
Frame	Carbon
	Fox Factory Float 38
	Fox Float X2 Factory
Wheels	Carbon
Wheel Size	29″ / 27.5″
	SRAM Code Ultimate Stealth Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	600Wh
	XX Eagle Transmission, Eagle AXS
Drivetrain	1 × 12 Electronic
Suspension	Full
Front Travel	170mm
Rear Travel	174mm
Brand Site	merida-bikes.com
Summary	The Merida eONE-SIXTY 10K is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with ultra high-end components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

eONE-SIXTY 10K

Other Enduro bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

eONE-SIXTY 10K

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	eONE-SIXTY 10K2025 Merida

Frame	eONE-SIXTY CF4 III, material: carbon, 174 mm suspension travel, 29x2,6" max. wheelsize, 148x12 mm axle standard, intube BB Standard: STEPS, Press Fit Hanger Standard: UDH
Fork	Fox 38 Factory eMTB+, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize Travel: 170mm Spring Type: Air
Shock	Fox Float X2 Factory, 2 Pos Lever Travel: 174mm
Bottom Bracket	STEPS, press-fit
Headset	Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Stem	MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar	MERIDA TEAM TR II, material: carbon, 800 mm width, 20 mm rise
Saddle	PROXIM W400 T2.0, V-mount adapter, incl. MERIDA minitool
Seatpost	MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost Type: Dropper
Pedals	VP VPE-527

Groupset

Rear Derailleur	SRAM XX Eagle Transmission AXS
Crank	SRAM XX Eagle Transmission E-MTB for Steps, 36 teeth
Shifters	SRAM AXS Pod Controller
Cassette	SRAM XX Eagle Transmission, 10-52, 12 speed
Chain	SRAM XX Eagle Transmission, Flattop
Brakes	SRAM Code Ultimate Stealth, 4 piston Type: SRAM Code Ultimate Stealth Hydraulic Disc

Wheels

Rims	DT Swiss Spline HXC1501 spline 30 boost, 110x15 mm width front hub, 148x12 mm width rear hub, 30 mm inner width, Centerlock, microspline, material: carbon, Tubeless ready (tubeless tape and valves included)
Front Hub	MERIDA EXPERT TR, including removeable lever, 6/4 mm allen key
Rear Hub	MERIDA EXPERT TR, including removeable lever, 6/4 mm allen key
Tires	Front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.4", fold, 3C DD MaxxTerra
Disc Rotors	SRAM HS2, 220 mm, 200 mm

Electric Components

Motor	Shimano EP801, 85Nm
Battery	Trendpower Internal Battery 600 Wh
Display	Shimano SC-EM800
Charger	Trendpower EU Charger, 4A

Accessories

Lights	Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / Lezyne LED Femto USB STVZO
