    eONE-SIXTY 10K2021 Merida
    Recommended
    MSRP
    ($10,482)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    Weight
    		50.5 lbs
    8.6
    Frame
    		Carbon
    		Fox Factory Float 38
    		Fox Float X2 Factory
    Wheels
    		Carbon
    Wheel Size
    		29″ / 27.5″
    		Shimano XTR Hydraulic Disc
    		Shimano 85Nm mid-drive
    		Shimano 630Wh
    		XTR
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary

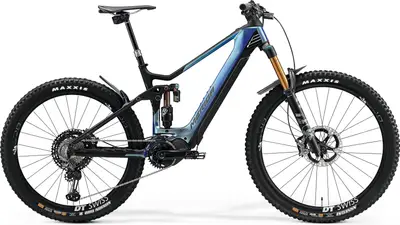

    		The Merida eONE-SIXTY 10K is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 10K
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eONE-SIXTY 10K

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 10K2021 Merida
    Frame

    eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    FOX 38 Factory eMTB+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Spring Type: Air

    Shock

    FOX Factory Float X2, platform

    Travel: 150mm

    Bottom Bracket

    included

    Headset

    MERIDA-8152

    Stem

    MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Seatpost

    SP REVERB AXS, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XTR Shadow+

    Crank

    Shimano CRE80-12-B, 34 teeth, Shimano FCEM900

    Shifters

    EC AXS ROCKSHOX LH 1BUTTON DIS / Shimano XTR M9100

    Cassette

    Shimano M9100, 10-51 teeth, 12 speed

    Chain

    CNM9100

    Brakes

    Shimano XTR, 4 piston

    Type: Shimano XTR Hydraulic Disc

    Wheels
    Rims

    DT Swiss Spline HXC1250 Spline 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: carbon, Tubeless ready (tubeless tape and valves included)

    Tires

    Front: Maxxis Assegai, 29x2.5 ", fold, TR DD 3C MaxxGrip, Rear: Maxxis Agressor, 27.5x2.5", fold, TR DD Dual

    Disc Rotors

    Shimano RT-MT900 / Shimano RT-EM910, 203 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Shimano E8036 630Wh / E8035 504Wh XS

    Display

    Shimano SC-EM800

    Charger

    Shimano EC-E8004, 4A charging current

    Accessories
    Lights

    LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / LEZYNE LED FEMTO USB REAR STVZO

    Fenders

    C093-02F + C093-02R
