MSRP | ($12,029) | $4,699 |
---|---|---|
Where to Buy | — $1 At | $3,499 26% off At Canyon |
Category | Enduro, E-Bike | Enduro |
Weight | 48.7 lbs | 31.9 lbs |
Carbon | Carbon | |
Fork | Fox Factory Float 36 | RockShox Lyrik Select+ |
Shock | Fox Float X2 Factory | RockShox Super Deluxe Coil Select+ |
Wheels | Carbon | Aluminum |
27.5″ | 29″ / 27.5″ | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Shimano 250W 70Nm mid-drive | ||
Shimano 504Wh | ||
Groupset | XTR, Shimano | GX Eagle AXS |
Drivetrain | 1 × 12 | 1 × 12 Electronic |
Suspension | Full | Full |
Front Travel | 160mm | 160mm |
Rear Travel | 150mm | 150mm |
Brand Site | ||

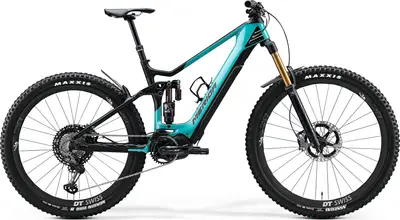

Summary | The Merida eONE-SIXTY 10K is a 27.5″ carbon frame full suspension enduro e-bike with ultra high-end components. |
Based on frame geometry and build specs.
Frame | eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh BB Standard: BSA, 73mm, Threaded | Canyon Spectral CF, Full-carbon frame with optimised stiffness-to-weight ratio and integrated K.I.S. technology. Our famous triple phase suspension design with the Flip Chip system for simple geometry adjustment., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: BSA, 73mm, Threaded |
---|---|---|
Fork | FOX 36 Factory E-Bike+, Air, 160mm suspension travel, Tapered, 51mm fork offset Travel: 160mm | RockShox Lyrik Select+ RC, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 5.16 lbs Travel: 160mm |
Shock | FOX Factory Float X2 | RockShox Super Deluxe Coil Select+ RT, Spring: 400 |
Bottom Bracket | included | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 0.19 lbs |
Headset | MERIDA 1901 | |
Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL) | |
Handlebar | MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
Saddle | Prologo PROXIM W650 | Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 0.58 lbs |
Seatpost | MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost | Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL) |
Pedals | VP, VPE-537 | None included |
Grips | Canyon G5 |
Rear Derailleur | Shimano XTR Shadow+ | SRAM GX Eagle AXS, Weight: 0.75 lbs |
---|---|---|
Crank | Shimano CRE80-12-B, 34 teeth, Shimano FC-M8050 | SRAM GX Eagle, Number of chainrings: 1 |
Shifters | Shimano SL -MT800-IL / Shimano XTR | SRAM GX Eagle AXS, Weight: 1.15 lbs |
Cassette | Shimano M9100, 10-51 teeth, 12 speed | SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12 |
Chain | CNM9100 | SRAM SX Eagle |
Chain Guide | Canyon GP0293-02 | Canyon EP1266-01 ISCG05 Plate | |
Brakes | Shimano XTR | SRAM Code R | SRAM Matchmaker Clamp |
Rims | DT Swiss Spline HXC 1200 spline 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: carbon, Tubeless ready (tubeless tape and valves included) | DT Swiss EX511 370LN, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.18 lbs | DT Swiss EX511, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 2.30 lbs |
---|---|---|
Front Hub | MERIDA COMP TR | |
Rear Hub | MERIDA COMP TR | |
Tires | Maxxis Assegai / Maxxis DHR II | Maxxis Assegai, Width: 2.5", Weight: 2.25 lbs | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5", Wheelsize: 27.5", Weight: 2.36 lbs |
Disc Rotors | Shimano RT-MT900 / Shimano RT-EM910 | SRAM Centerline Rounded, Size: 200 mm, Weight: 0.42 lbs |
Motor | Shimano E8000, 70Nm | |
---|---|---|
Battery | Shimano 2xE8035, 504Wh | SRAM Powerpack |
Display | Shimano SC-E8000 |
Lights | CG-119PG-BLACK(1) / CG-404RG-BLK | |
---|---|---|
Fenders | C093-02F + C093-02R |
