    eONE-FORTY EQ2022 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    5.6
    Frame
    		Aluminum
    		Suntour Zeron
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano Deore Hydraulic Disc
    		Shimano 85Nm mid-drive
    		Shimano 630Wh
    		Deore
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		133mm
    Brand Site

    merida-bikes.com

    Summary

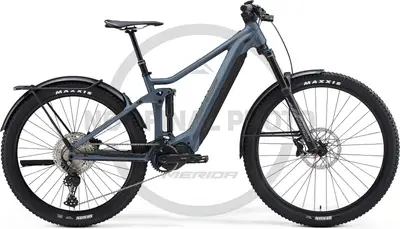

    		The Merida eONE-FORTY EQ is a 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY EQ
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-FORTY EQ

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-FORTY EQ2022 Merida
    Frame

    eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" without fender max./ 27.5"x2.6" with fender max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour ZERON 35-Boost LOR, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize

    Travel: 140mm

    Spring Type: Air

    Shock

    SR Suntour EDGE, lockout

    Travel: 133mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA EXPERT CC, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano Deore RDM5100 11

    Crank

    Shimano CRE70-B, 34 teeth

    Shifters

    Shimano SL -MT500-IL

    Cassette

    Shimano M5100, 11-51 teeth, 11 speed

    Chain

    KMC e11S EPT

    Brakes

    Shimano M4100, 4 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Maxxis Rekon, 29x2.4", wire, DUAL

    Disc Rotors

    Shimano RT30 / Shimano RTEM300, 203 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Shimano E8036 630Wh / Shimano E8035 504Wh for S only

    Display

    Shimano SC-E5003A

    Accessories
    Fenders

    Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail

    Racks

    MERIDA MA006

    Stand

    Atranvelo ED-100-PC
