    eONE-FORTY 7752022 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    5.8
    Frame
    		Aluminum
    		Fox Rhythm Float 34
    		RockShox Deluxe Select+
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano SLX Hydraulic Disc
    		Shimano 85Nm mid-drive
    		750Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		133mm
    Brand Site

    merida-bikes.com

    Summary

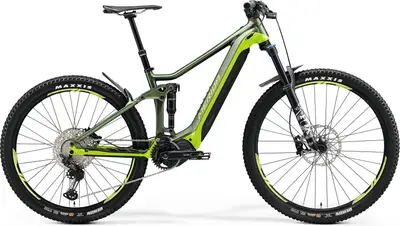

    		The Merida eONE-FORTY 775 is a 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 775
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eONE-FORTY 775

    Highest gear

    (descending)

    Geometry
    Specs
    eONE-FORTY 7752022 Merida
    Frame

    eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize

    Travel: 140mm

    Spring Type: Air

    Shock

    Rock Shox Deluxe Select+, platform

    Travel: 133mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA EXPERT CC, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost - XXL 170mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XT RDM8100 Shadow+ 12

    Crank

    Shimano CRE80-12-B, 34 teeth

    Shifters

    Shimano SL -MT500-IL / Shimano Deore M6100

    Cassette

    Shimano M6100, 10-51 teeth, 12 speed

    Chain

    KMC e12T EPT

    Brakes

    Shimano SLX, 4 piston

    Type: Shimano SLX Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Rear Hub

    Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra

    Disc Rotors

    Shimano RT64 / Shimano RTEM600, 203 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Simplo Internal Battery, 750Wh

    Display

    Shimano SC-E7000

    Accessories
    Fenders

    C093-02F + C093-02R
