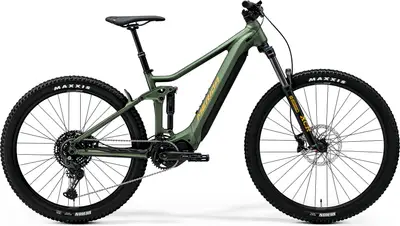

    eONE-FORTY 400 SE2025 Merida
    Recommended
    MSRP
    ($5,491)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		53.7 lbs
    5.0
    Frame
    		Aluminum
    		Suntour XCR Air
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano Deore Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 630Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		133mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eONE-FORTY 400 SE is a 29″ / 27.5″ aluminum frame full suspension trail e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 400 SE
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-FORTY 400 SE

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-FORTY 400 SE2025 Merida
    Frame

    eONE-FORTY LITE III, material: aluminium, 133 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCR34 LOR DS, Air Boost, 140 mm, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize

    Travel: 140mm

    Spring Type: Air

    Shock

    SR Suntour Edge, platform

    Travel: 133mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Stem

    MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes

    Handlebar

    MERIDA EXPERT eTR, 780 mm width, 20 mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, M 100 mm travel seatpost - L/XL 125 mm travel seatpost - XXL 150 mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Shimano CRE70-B, 34 teeth

    Shifters

    Shimano SL -MT500-IL / Shimano CUES U6000

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT420 / Shimano M4100, 4 piston, 2 piston

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Front Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Maxxis Rekon, 29x2.4", wire, DUAL, Rear: Maxxis Rekon, 27.5x2.6", wire, EXO

    Disc Rotors

    Shimano RT30 / Shimano RT-EM300, 203 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Shimano EN806 630Wh, Shimano EN805 504Wh for XS only

    Display

    Shimano SC-EN600

    Charger

    Shimano EC-E6002, 2A charging current

    Accessories
    Lights

    Chance Good 119PG / Chance Good 404RG

    Fenders

    Sunnywheel C093-02F + C093-02R
