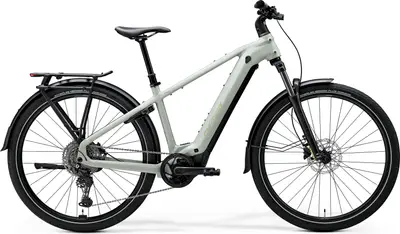

    eFLOAT TK 500 EQ2025 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		63.9 lbs
    7.4
    Frame
    		Aluminum
    		Suntour X1
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Alivio Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 800Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eFLOAT TK 500 EQ is a 700c aluminum frame commuter e-bike with mid-range components and shimano alivio hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eFLOAT TK 500 EQ

    Highest gear

    (descending)

    Geometry
    Specs
    eFLOAT TK 500 EQ2025 Merida
    Frame

    eFLOAT TK LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube

    BB Standard: BSA, Threaded

    Fork

    SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize

    Travel: 120mm

    Spring Type: Air

    Bottom Bracket

    BSA, threaded

    Headset

    Acros ICR MERIDA INTEGRATED neck w/ Blocklock

    Handlebar

    MERIDA EXPERT, material: aluminium, 680mm width, 15mm rise

    Saddle

    MERIDA EXPERT TK II, V-mount

    Seatpost

    MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-891

    Groupset
    Rear Derailleur

    Shimano Cues U6000, GS

    Crank

    FSA Direct Mount Steel MT Chainring and Chainguard, 38 teeth

    Shifters

    Shimano SL -MT500-L / Shimano CUES U6000-10

    Cassette

    Shimano Cues LG400, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

    Spokes

    Black stainless, black nipples

    Front Hub

    Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Schwalbe Energizer Plus Performance, 622-55, wire, reflecting line

    Disc Rotors

    Shimano RT10, 180mm

    Electric Components
    Motor

    Bosch Performance Line CX

    Battery

    Bosch PowerTube 800, 800Wh

    Display

    Bosch Purion 200

    Accessories
    Fenders

    Sunnywheel SW-FA311-65A/ SW-FA311-65E1

    Racks

    MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

    Lock

    Abus 4650 XL

    Stand

    Atranvelo ED-100-PC
