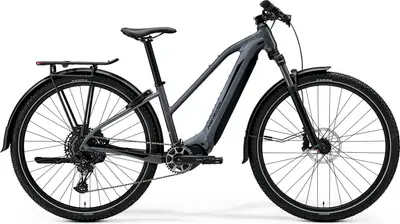

Compare: 2024 Merida eBIG.TOUR 675 EQ

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	eBIG.TOUR 675 EQ2024 Merida	Recommended

MSRP	($4,481)
Where to Buy	— $1 At
Category	Commuter, E-Bike
Weight	56.4 lbs
	7.9
Frame	Aluminum
	Suntour XCR Air
Wheels	Aluminum
Wheel Size	29″
	SRAM DB8 Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	750Wh
	NX Eagle
Drivetrain	1 × 12
Suspension	Hardtail
Front Travel	100mm
Brand Site	merida-bikes.com
Summary	The Merida eBIG.TOUR 675 EQ is a 29″ aluminum frame commuter e-bike with high-end components and sram db8 hydraulic disc brakes.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

eBIG.TOUR 675 EQ

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	eBIG.TOUR 675 EQ2024 Merida

Frame	eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize, 148x12 mm axle standard, intube BB Standard: BSA, Threaded
Fork	SR Suntour XCR34 LOR DS, Air Boost, 100 mm, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize Travel: 100mm Spring Type: Air
Bottom Bracket	BSA, threaded
Headset	MERIDA 8155
Handlebar	MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise
Saddle	MERIDA EXPERT TK, V-mount
Seatpost	MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback Type: Rigid
Pedals	VP VPE-537

Groupset

Rear Derailleur	SRAM NX Eagle
Crank	Samox EMA04, 34 teeth
Shifters	SRAM NX Eagle 12
Cassette	SRAM PG-1210 Eagle, 10-50 teeth, 12 speed
Chain	SRAM SX Eagle
Brakes	SRAM DB8, 4 piston Type: SRAM DB8 Hydraulic Disc

Wheels

Rims	MERIDA COMP CC II, 25 mm inner width, material: aluminium
Spokes	Black stainless
Front Hub	Novatec SL-TEAM D041SB-B15, 110x15 mm width front hub, 32 spoke holes, 6 bolt
Rear Hub	Novatec SL-TEAM D462SB-S3S-B12-11S, 148x12 mm width rear hub, 36 spoke holes, 6 bolt
Tires	Kenda Booster, 29x2.2", wire
Disc Rotors	SRAM CenterLine, 180 mm

Electric Components

Motor	Shimano EP6, 85Nm
Battery	Trendpower Internal Battery 750Wh
Display	Shimano SC-EN600

Accessories
