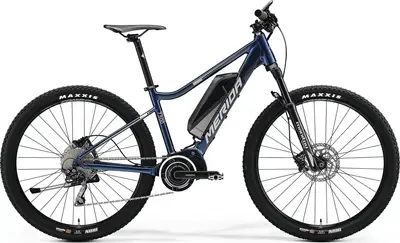

    eBIG.TOUR 5002017 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Frame
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Deore Hydraulic Disc
    		Shimano 250W 50Nm mid-drive
    		Shimano 418Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eBIG.TOUR 500 is a 700c commuter e-bike with upper mid-range components and shimano deore hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    eBIG.TOUR 500

    Highest gear

    (descending)

    Geometry
    Specs
    eBIG.TOUR 5002017 Merida
    Frame

    eBIG.TOUR (STePS)

    BB Standard: STEPS, Press Fit

    Fork

    Manitou Marvel comp 15 100 air

    Travel: 100mm

    Spring Type: Air

    Bottom Bracket

    STEPS, press-fit

    Handlebar

    MERIDA EXPERT OS 720 R10

    Saddle

    MERIDA Sport 5

    Seatpost

    MERIDA Expert H SB15 30.9

    Type: Rigid

    Pedals

    XC pro alloy

    Groupset
    Rear Derailleur

    Shimano Deore Shadow+

    Crank

    Shimano 38 DCG

    Shifters

    Shimano Deore

    Cassette

    Shimano CS-HG50-10 11-36

    Chain

    KMC X10

    Brakes

    Shimano M506

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    attached

    Wheels
    Rims

    MERIDA Big Comp CC

    Spokes

    Black stainless

    Front Hub

    Shimano Deore 15 cen / Shimano Deore cen

    Rear Hub

    Shimano Deore 15 cen / Shimano Deore cen

    Tires

    Maxxis Ikon 2.2 fold + EXO Protection

    Electric Components
    Motor

    Shimano [E6001]

    Battery

    Shimano E6010 418Wh

    Display

    Shimano Cyclo display SC-E6010

    Accessories
    Lights

    battery lamp
