Compare: 2026 Merida eBIG.TOUR 400 EQ

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

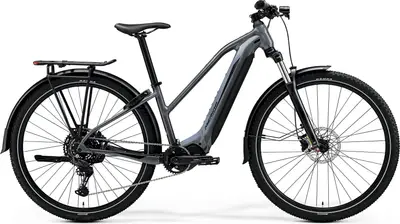

	eBIG.TOUR 400 EQ2026 Merida	Recommended

MSRP	($3,508)
Where to Buy	— $1 At
Category	Commuter, E-Bike
Weight	58.9 lbs
	7.0
Frame	Aluminum
	Suntour XCM
Wheels	Aluminum
Wheel Size	29″
	Shimano Alivio Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	Shimano 630Wh
	CUES
Drivetrain	1 × 10
Suspension	Hardtail
Front Travel	100mm
Brand Site	merida-bikes.com
Summary	The Merida eBIG.TOUR 400 EQ is a 29″ aluminum frame commuter e-bike with mid-range components and shimano alivio hydraulic disc brakes.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eBIG.TOUR 400 EQ

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	eBIG.TOUR 400 EQ2026 Merida

Frame	eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize, 148x12 mm axle standard, intube BB Standard: BSA, Threaded
Fork	SR Suntour XCM34-Boost LOR DS, 100 mm, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize Travel: 100mm Spring Type: Coil
Bottom Bracket	BSA, threaded
Headset	MERIDA 8155
Handlebar	MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise
Saddle	MERIDA EXPERT TK, V-mount
Seatpost	MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback Type: Rigid
Pedals	VP VPE-537

Groupset

Rear Derailleur	Shimano CUES U6000, GS
Crank	Shimano CRE70-B, 34 teeth
Shifters	Shimano CUES U6000
Cassette	Shimano LG300, 11-48 teeth, 10 speed
Chain	Shimano LG500
Brakes	Shimano MT-200, 2 piston Type: Shimano Alivio Hydraulic Disc

Wheels

Rims	MERIDA COMP CC II, 25 mm inner width, material: aluminium
Spokes	Black stainless
Front Hub	Shimano TC500-B, 110x15 mm width front hub, 32 spoke holes, Centerlock
Rear Hub	Shimano TC500-HM-B, 148x12 mm width rear hub, 32 spoke holes, Centerlock
Tires	Kenda Booster, 29x2.2", wire
Disc Rotors	Shimano RT30, 180 mm

Electric Components

Accessories

Riders Also Compared
